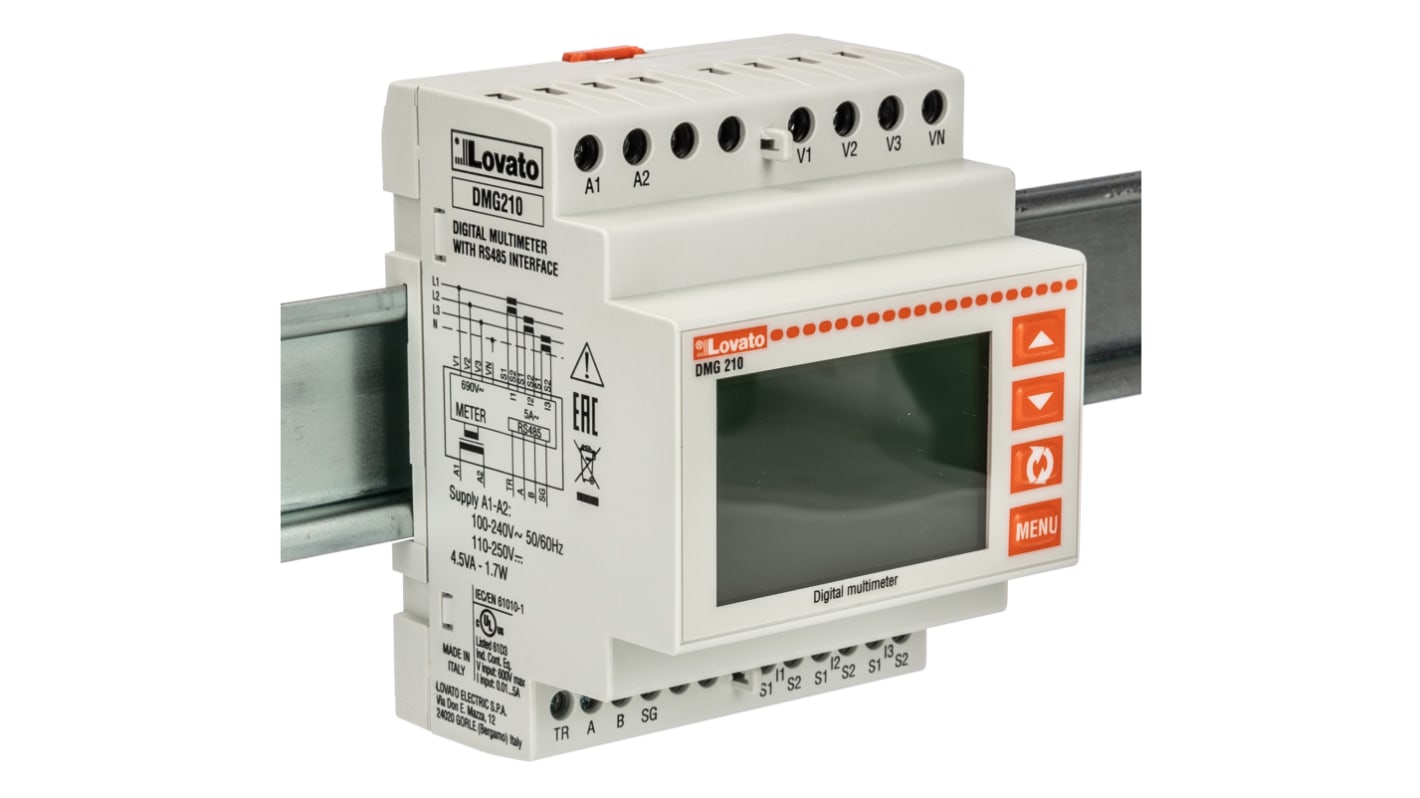

The DMG210 is a digital multimeter that has been designed to join the maximum ease of operation together with a wide choice of advanced functions. The graphic LCD display offers user-friendly interface. The DMG210 version also has a built-in RS485 interface. The rich variety of functions makes the DMG series of multimeters the ideal choice for a wide range of applications.
4U (72 mm wide) modular DIN Rail housing Graphic LCD display, 128 x 80 pixels Membrane keyboard with 4 keys for viewing and setting Easy and fast navigation Texts for measurements, set up and messages in 5 languages Reading of 160 electrical parameters True RMS measurements Continuous (gapless) sampling High accuracy IP40 (front) protection
Lovato Electric Series
Attribute
Value
Properties Measured
Current, Frequency, Power, Power Factor, Voltage
Display Type
LCD
Depth
63mm
Minimum Temperature
-20°C
Maximum Temperature
+60°C
Measurement Range
10 → 480 (Neutral) V ac, 20 → 830 (Phase → Phase) V ac, 45 → 66 Hz, Maximum of 10000 A
