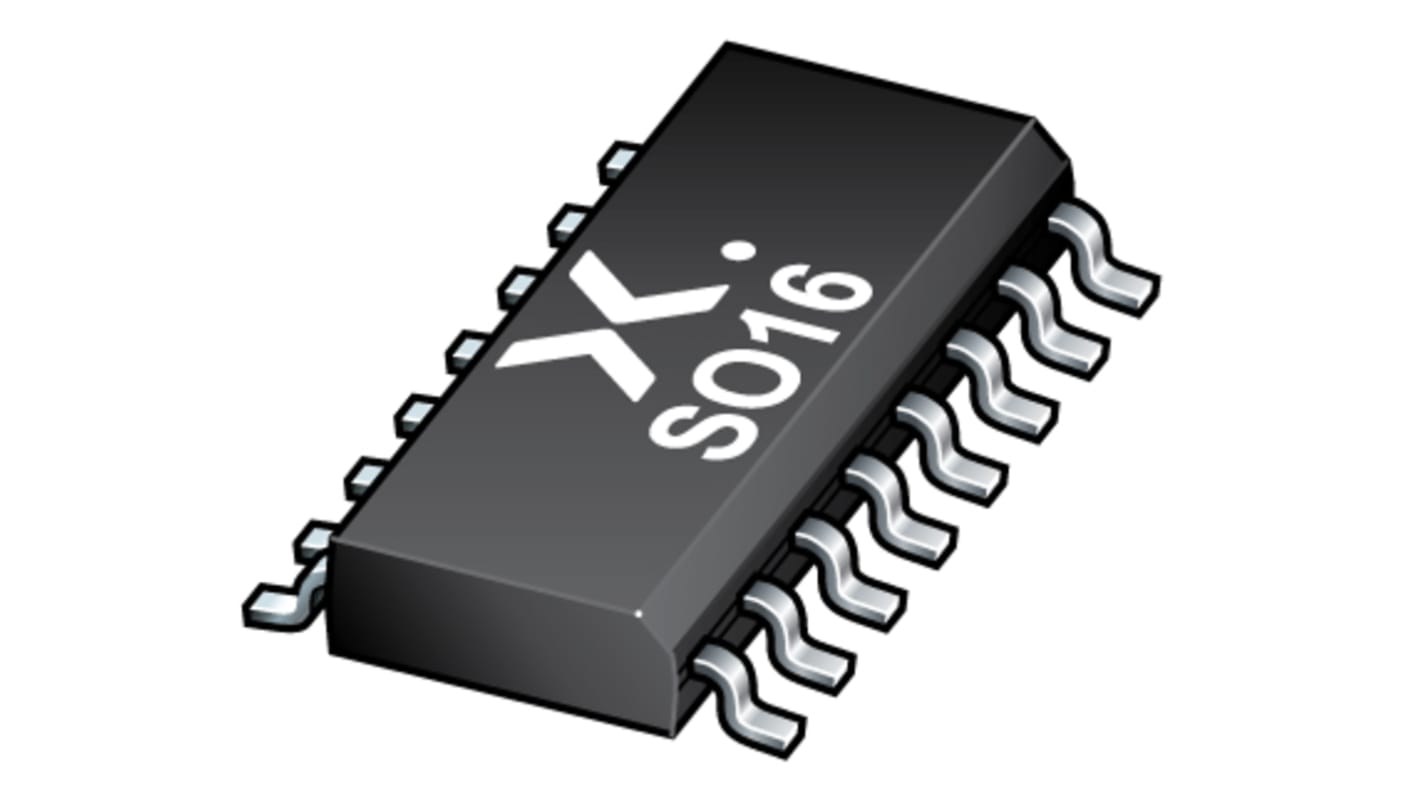

Nexperia 74HC595D,118 8-stage Shift Register, Serial to Serial/Parallel, 2 → 6 V, 16-Pin SOIC

  • RS Stock No. 170-7956
  • Mfr. Part No. 74HC595D,118
  • Manufacturer Nexperia
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

74HC Family Counters & Shift Registers, Nexperia

A range of 74HC Family CMOS Logic Counters and Shift Registers from NXP. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

74HC Family

Specifications
Attribute Value
Package Type SO
Number of Stages 8
Logic Family 74HC
Mounting Type Surface Mount
Operation Mode Serial to Serial/Parallel
Number of Elements 1
Pin Count 16
Minimum Operating Supply Voltage 2 V
Maximum Operating Supply Voltage 6 V
Dimensions 10 x 4 x 1.45mm
Length 10mm
Width 4mm
Direction Type Uni-Directional
Maximum Operating Temperature +125 °C
Triggering Type Positive Edge
Height 1.45mm
Reset Type Asynchronous
Minimum Operating Temperature -40 °C
Preset Type Asynchronous
On back order for despatch 16/09/2020, delivery within 3 working days
Price Each (On a Reel of 2500)
Was HK$0.86
HK$ 0.758
(exc. GST)
units
Per unit
Per Reel*
2500 - 2500
HK$0.758
HK$1,895.00
5000 - 10000
HK$0.735
HK$1,837.50
12500 - 22500
HK$0.71
HK$1,775.00
25000 +
HK$0.671
HK$1,677.50
*price indicative
