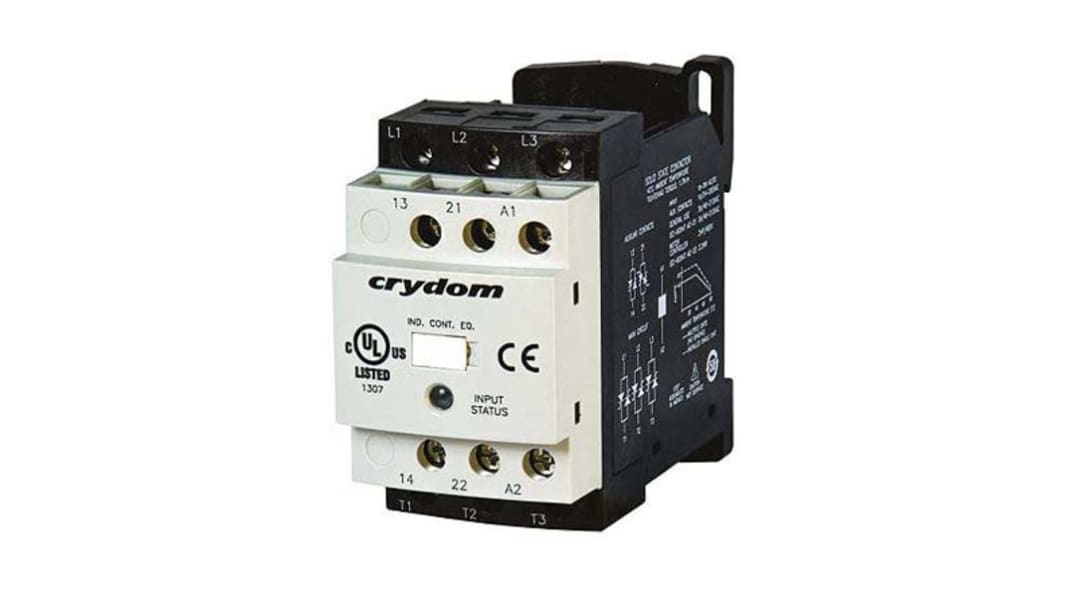

Sensata / Crydom DRC Series Solid State Contactor, 3-Pole, 500 mA, 480 V ac
- RS Stock No.:
- 144-5969
- Mfr. Part No.:
- DRC3P48D433R
- Manufacturer:
- Sensata / Crydom
View all Contactors
- RS Stock No.:
- 144-5969
- Mfr. Part No.:
- DRC3P48D433R
- Manufacturer:
- Sensata / Crydom
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Sensata | Crydom Solid-State Contactor, Instantaneous Turn-On, DIN Rail Mounting - DRC Series - DRC3P48D433R
For rapid-fire switching of electrical loads, turn to this solid-state contactor from Sensata | Crydom. It's a reliable choice for starting and stopping three-phase motors at high speeds, thanks to its maximum switching frequency of up to 9000 cycles per hour. Integrated overvoltage protection safeguards your circuits from electrical surges. For installation in a snap, you can mount it on a DIN rail. Put this product to work in packing machinery and lighting systems.
Features & Benefits
• LED indicator for ease of status monitoring
• Solid-state design means there aren't any moving parts, reducing the risk of wear for a long service life
• Thermoplastic housing provides effective insulation for increased electrical safety
• Compact dimensions of 95.6 (L) x 45.3 (W) x 86.7mm (H) to maximise space on your DIN rail
• Safe for use in harsh environments, thanks to a wide operating temperature range between -20°C and +60°C
• Solid-state design means there aren't any moving parts, reducing the risk of wear for a long service life
• Thermoplastic housing provides effective insulation for increased electrical safety
• Compact dimensions of 95.6 (L) x 45.3 (W) x 86.7mm (H) to maximise space on your DIN rail
• Safe for use in harsh environments, thanks to a wide operating temperature range between -20°C and +60°C
What's the operating voltage range of this solid-state contactor?
It has a wide operating voltage range of 48 to 530V AC, so you can count on it in low and high-voltage applications.
Solid State Contactors
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3 |
| Contact Voltage Rating | 480 V ac |
| Contact Current Rating | 500 mA |
| Series | DRC |
| Range | Crydom |
| Function | Reversing |
| Number Of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Width | 86.7mm |
| Length | 45.3mm |
| Depth | 95.6mm |
| Load Voltage | 48 V ac → 510V ac |
| Mounting Style | DIN Rail |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Load Current | 4.8A |
| Control Voltage | 18 V ac → 30 V ac, 18 V dc → 30 V dc |
| Pole and Throw Configuration | SPDT |
| Input Current | 32mA |
