50Ω Wurth Elektronik Surface Mount Chip Balun
- RS Stock No.:
- 881-3214
- Mfr. Part No.:
- 748415245
- Manufacturer:
- Wurth Elektronik

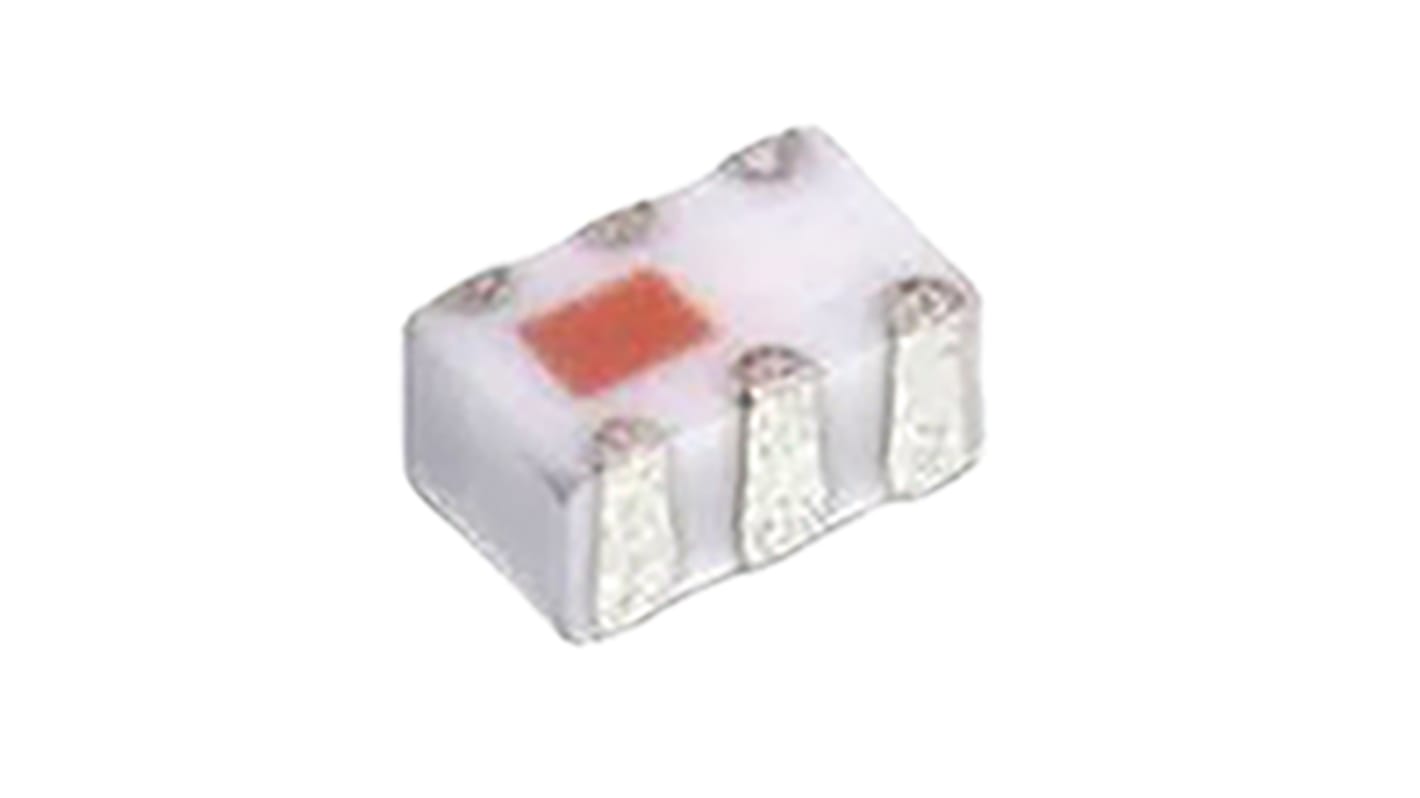

The image is for reference only, please refer to product details and specifications
On back order for despatch 27/08/2024, delivery within 3 working days
Added
Price Each (In a Bag of 5)
HK$23.92
| Units | Per unit | Per Bag* |
| 5 - 995 | HK$23.92 | HK$119.60 |
| 1000 - 1995 | HK$23.392 | HK$116.96 |
| 2000 + | HK$22.894 | HK$114.47 |
| *price indicative | ||
- RS Stock No.:
- 881-3214
- Mfr. Part No.:
- 748415245
- Manufacturer:
- Wurth Elektronik
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Multilayer Chip Balun - WE-BAL Series
Wurth WE-BAL Multilayer Chip Low loss SMD Balun with balanced impedance of 50 to 200Ω and a power capacity of 2W Max. Applications include: RF ; Wireless communication systems (e.g. Home RF, DECT, WLAN, Bluetooth, ZigBee)
Operating temperature: –40 °C to +85 °C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Unbalance Impedance | 50Ω |
| Balance Impedance | 50Ω |
| Maximum Insertion Loss | 1.5dB |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Dimensions | 1.6 x 0.8 x 0.6mm |
| Height | 0.6mm |
| Length | 1.6mm |
| Width | 0.8mm |
| Maximum Frequency | 2.5GHz |
| Minimum Frequency | 2400MHz |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
