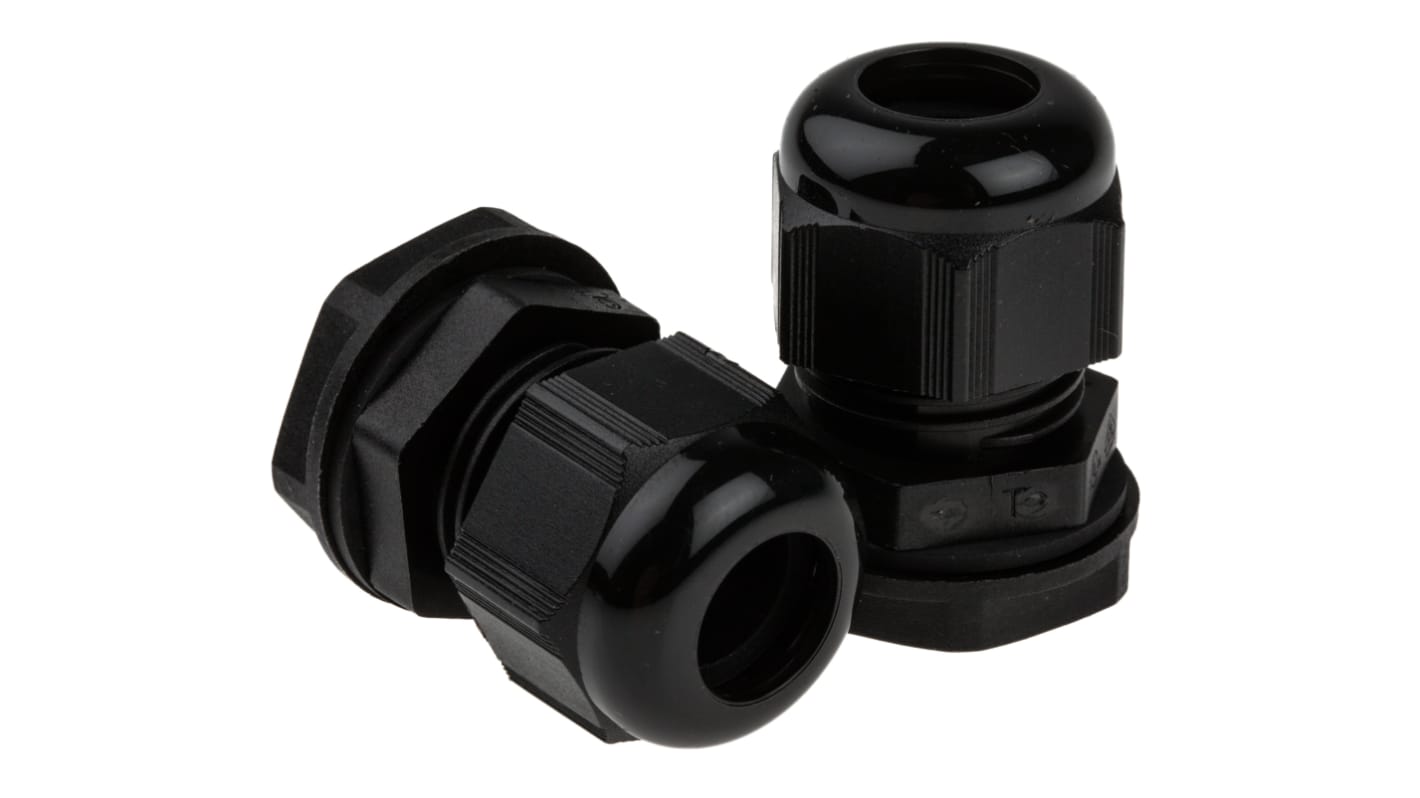

Alpha Wire FIT Series Black PA 6 Cable Gland, M20 Thread, 6mm Min, 12mm Max, IP66, IP68
- RS Stock No.:
- 175-3772
- Mfr. Part No.:
- PMC20 BK080
- Manufacturer:
- Alpha Wire
On back order for despatch 23/05/2024, delivery within 3 working days
Added
Price Each (In a Bag of 10)
HK$24.30
| Units | Per unit | Per Bag* |
| 10 + | HK$24.30 | HK$243.00 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 175-3772
- Mfr. Part No.:
- PMC20 BK080
- Manufacturer:
- Alpha Wire
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Belden Alpha Wire Cable Gland, 6 to 12mm Cable Diameter, M20 x 1.5 Thread Size - FIT series - PMC20 BK080
Use this Belden Alpha Wire cable gland to secure your electrical cable to its connection. As the gland has a locknut, it can be screwed securely in place to protect the cable from external contaminants. The unit offers built-in strain relief to reduce stress at the plug termination point and prevent cracking and fraying caused by the cable being sharply bent. For workplace safety, the flame-retardant PA6 (polyamide 6) body material extinguishes after 60 seconds in the event of a fire.
Features & Benefits
• CR (chloroprene rubber) sealant is resistant to water and oil to keep the connection protected
• High-strength moulded construction protects against shock and abrasion damage
• Permanent operating temperature range of -20°C to +100°C and intermittent up to +150°C for harsh environments
• High-strength moulded construction protects against shock and abrasion damage
• Permanent operating temperature range of -20°C to +100°C and intermittent up to +150°C for harsh environments
Applications
• Telecommunications• Process control• Instrumentation• Data transmission• Electrical power supplies
Does this cable gland provide protection against dust and moisture?
Yes, this cable gland is rated IP68 (ingress protection) to indicate it is totally protected against dust and low-pressurised water immersion for up to half an hour. After thirty minutes it becomes IP66, protecting against low-pressure water sprays.
Specifications
Attribute | Value |
|---|---|
| Thread Size | M20 |
| Maximum Cable Diameter | 12mm |
| Minimum Cable Diameter | 6mm |
| Material | PA 6 |
| Colour | Black |
| Series | FIT |
| IP Rating | IP66, IP68 |
| Locknut Included | Yes |
| Fire Behaviour | Self-extinguishing |
| Maximum Operating Temperature | +100 °C, +150°C |
| Minimum Operating Temperature | -30 °C, -20°C |
| Standards Met | CSA, UL |
| Operating Temperature Range | -20°C to +100°C (Permanent), -30°C to +150°CIntermittent |
