RS PRO Switching Power Supply, 0 → 40V, 54A, 1-Output, 720W
- RS Stock No.:
- 252-1601
- Manufacturer:
- RS PRO
N
View all Bench Power Supplies
8 In stock for delivery within 3 working days
Price Each
HK$21,626.25
| units | Per unit |
| 1 + | HK$21,626.25 |
- RS Stock No.:
- 252-1601
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

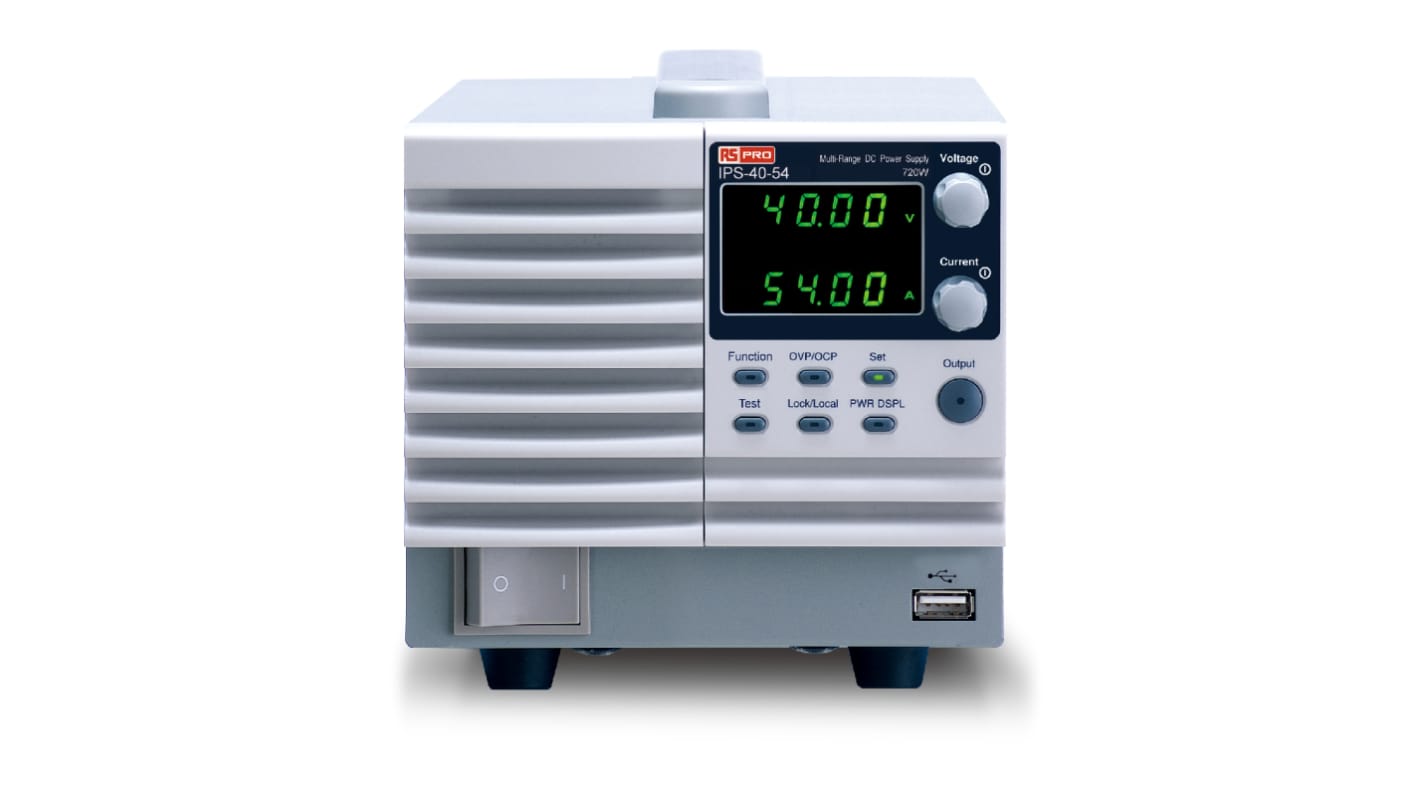

RS PRO Programmable Switching Multi Range D.C Power Supply
From RS PRO this is the programmable switching DC bench power supply, single output, multi range. The programmable switching power supply provides the configuration of voltage and current within the power range due to having the multi range feature. A bonus to this bench power supply is that you can connect multiple units in series (up to 2 units) and parallel (up to 3 units) allowing the increase of voltage or a higher current output broadening the application coverage plus, is a cost saving, as you do not need to use various other models for work requiring different power needs. This model is a truly versatile multi range programmable switching power supply with a wealth of features and application opportunities.
Features & Benefits
- Single output power supply
- Can be connected in Series for two units
- Can be connected in Parallel – maximum three units
- C.V/C.C Priority mode - DUT protection
- Bleeder control, internal resistance, panel lock functions
- Adjustable slew rate
- High efficiency and high-power density
- 1/3 Rack mount size design
- Standard interface, LAN, USB, analogue control interface
- Optional interface, GPIB -USB adaptor
- Size 142 mm wide, 124 mm high, 350 mm depth, weight 5.3 kg
- Fan with thermal sensing control
Applications
- Laboratories and educational facilities
- Product testing, quality assurance
- Service operation
- Post-sales support
- Product development
- Debugging
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 0 → 40V |
| Bench Power Supply Type | Multi Range DC Power Supply |
| Output Current | 54A |
| Number of Outputs | 1 |
| Type | Analogue, Digital |
| Power Rating | 720W |
| Minimum Temperature | 0°C |
| Maximum Temperature | 50°C |
| Model Number | PSW 40-54 |
