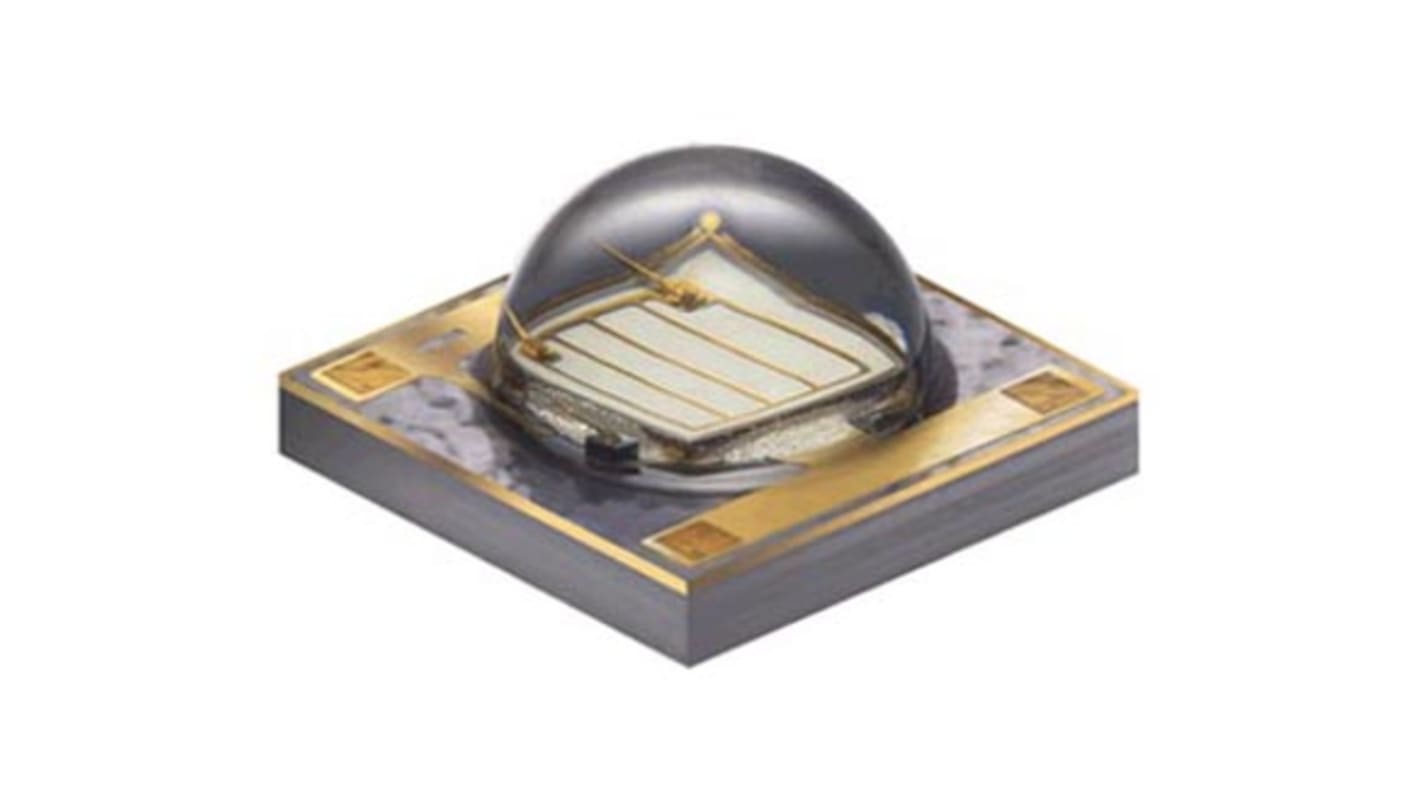

N3535U-UNL1-A1G11H-410 TSLC, UV LED, 420Nm 560mW 125 °, 2-Pin Surface Mount package

  • RS Stock No. 903-3762
  • Mfr. Part No. N3535U-UNL1-A1G11H-410
  • Manufacturer TSLC
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

TSLC 3535 UV LEDs

The 3535 family from TSLC are a family of high power UV LEDs. They all share the same 3535 footprint with two options of domed lens; the UNL1 with a lower profile and a 125° beam angle or the UNF1 with a higher dome and a narrower 55° beam angle.
The 3535 UV LEDs offer high reliability and high performance. Available in a variety of different UV wavelengths (listed below) makes them ideal for applications such as UV curing and general purpose UV applications.

Features of the 3535 UV LEDs:
3535 footprint - 3.5 x 3.5 mm
SMD package
Domed lens
High power
High reliability
55° or 125° beam angle

TSLC UV colour categories:
U40 – 380 to 390 nm
U50 – 390 to 400 nm
U60 – 400 to 410 nm
U70 – 410 to 420 nm

Ultraviolet (UV) LEDs, TSLC

Specifications
Attribute Value
Number of LEDs 1
Peak Wavelength 420nm
Radiant Flux 560mW
Viewing Angle 125 °
Lens Shape Dome
Number of Pins 2
Mounting Type Surface Mount
Height 3mm
Length 3.45mm
Width 3.45mm
49 In stock for delivery within 3 working days
Price Each
HK$ 95.32
(exc. GST)
units
Per unit
1 - 9
HK$95.32
10 - 49
HK$86.69
50 - 99
HK$81.70
100 - 149
HK$80.10
150 +
HK$78.50
