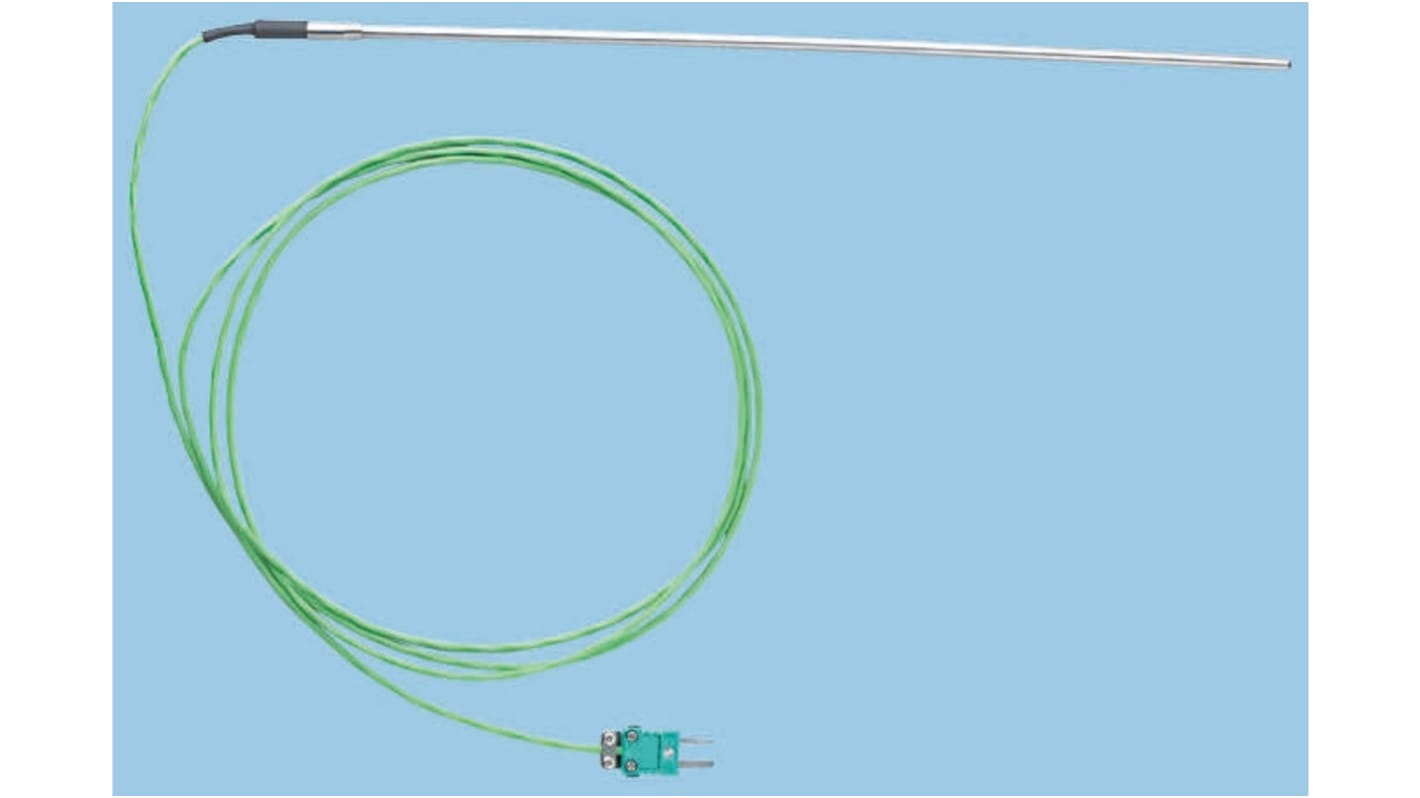

RS PRO Type K Thermocouple 300mm Length, 4.5mm Diameter → +1200°C
- RS Stock No.:
- 433-4436
- Manufacturer:
- RS PRO
On back order for despatch 17/05/2024, delivery within 3 working days
Added
Price Each
HK$1,276.73
| Units | Per unit |
| 1 - 4 | HK$1,276.73 |
| 5 + | HK$1,050.75 |
- RS Stock No.:
- 433-4436
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Type K Inconel 600 sheathed thermocouple with cable exit + connector
Type K Inconel 600 High Temperature sheathed thermocouple with cable exit + connector
Class 1 Type K thermocouple with Inconel 600 sheath.
Hot solder insulated from the earth.
Non-removable stainless steel inline terminal enclosure Ø 5 for Tc Ø 3 mm and Ø 6 mm for Tc Ø 4.5 mm.
MARLIN miniature male connector output with compensated pins and cable grip.
Bendable sheath.
Class 1 Type K thermocouple with Inconel 600 sheath.
Hot solder insulated from the earth.
Non-removable stainless steel inline terminal enclosure Ø 5 for Tc Ø 3 mm and Ø 6 mm for Tc Ø 4.5 mm.
MARLIN miniature male connector output with compensated pins and cable grip.
Bendable sheath.
Specifications
Attribute | Value |
|---|---|
| Thermocouple Type | K |
| Probe Diameter | 4.5mm |
| Probe Length | 300mm |
| Maximum Temperature Sensed | +1200°C |
| Probe Material | Stainless Steel |
| Termination Type | Miniature Plug |
| Cable Length | 3m |
| Standards Met | RoHS Compliant |
| Response Time | 0.7 s |
