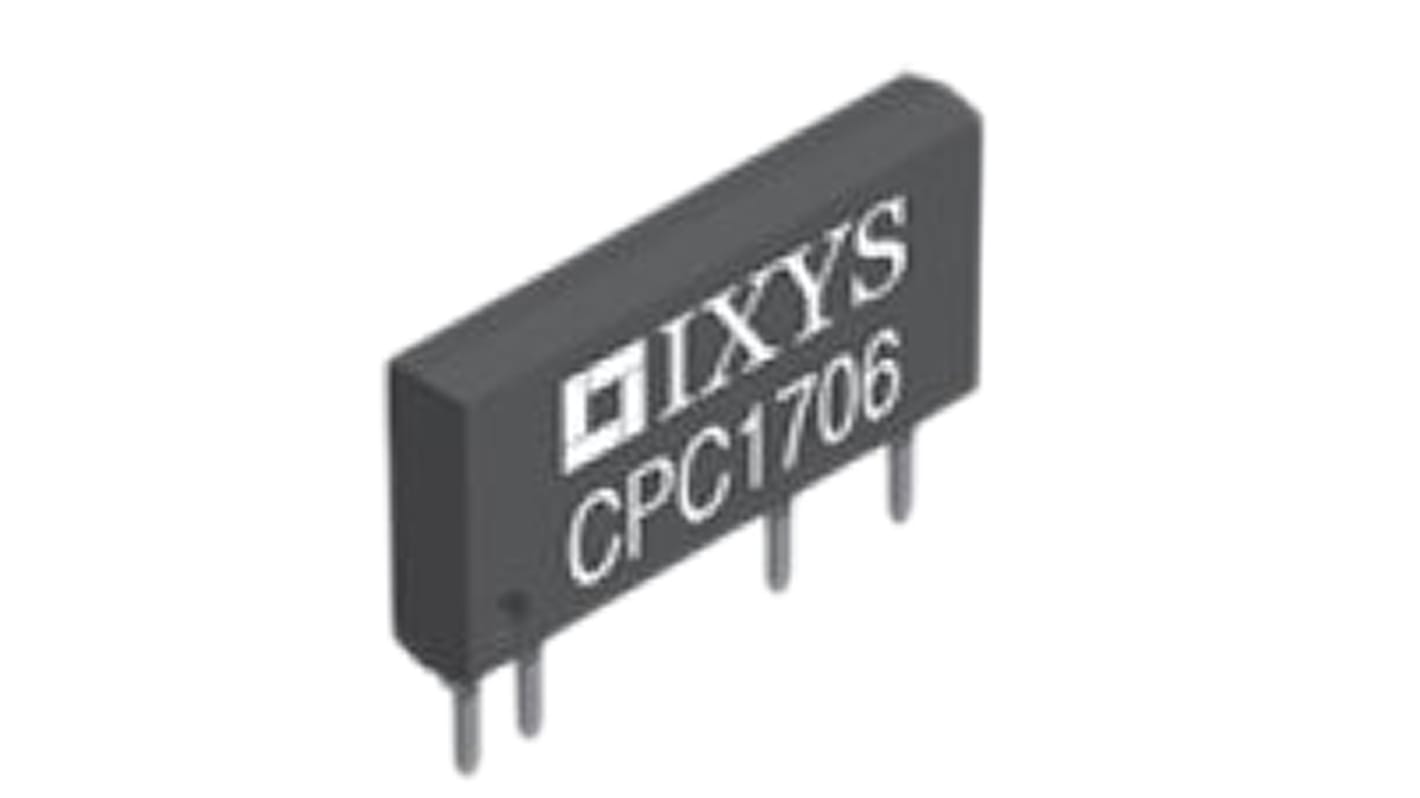

IXYS ±4 A dc SPNO Solid State Relay, DC, PCB Mount, MOSFET

  • RS Stock No. 906-1079
  • Mfr. Part No. CPC1706Y
  • Manufacturer IXYS
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

1-Form-A OptoMOS DC Power SIP Relay, CPC

This single pole miniature solid state relays has a normally open (1-Form-A) contact. It is manufactured in a 4-pin power SIP package. They have an input output isolation barrier rated to 2500 Vrms. The outputs have been constructed from efficient MOSFET switches and the well-known OptoMos architecture. The input is an efficient GaAlAS infrared LED which controls the optically coupled output.

With a low on-resistance and a high load current rating these units are suitable for a wide variety of applications, including those requiring high performance switching.

Potential Applications:
Industrial controls
Motor control
Robotics
Medical equipment, patient/equipment isolation
Instrumentation
Multiplexers
Data acquisition
Electronic switching
I/O subsystems
Meters (watt-hour, water, gas)
IC equipment
Home appliances

Features
Handle load currents up to 4A dc
2500 Vrms input/output isolation
Power SIP package
High reliability
No moving parts
Low drive power requirements (TTL/CMOS compatible)
Arc-free with no snubbing circuits
No EMI/RFI generation
Machine insert-able, wave solderable

Standards

UL 508 Certified Component: File E69938
CSA Certified Component: Certificate 1172007

Ixys Solid State Relays, PCB Mount

Specifications
Attribute Value
Maximum Load Current ±4 A dc
Mounting Type PCB Mount
Switching Type DC
Contact Configuration SPNO
Terminal Type PCB Pin
Output Device MOSFET
Package Style SIP
Maximum Turn On Time 5 ms
Dimensions 21.082 x 3.302 x 10.16mm
Capacitance 75pF
Depth 3.3mm
Operating Temperature Range -40 → +85°C
Off State Leakage Current 1 μA
Length 21.08mm
Height 10.16mm
Standards Met CSA, UL 508 Approved File No E69938
Special Features Arc-Free With No Snubbing Circuits, High Reliability, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable
Number of Poles 1
Relay Type OptoMOS
295 In stock for delivery within 3 working days
Price Each (In a Bag of 5)
HK$ 31.972
(exc. GST)
units
Per unit
Per Bag*
5 - 120
HK$31.972
HK$159.86
125 - 245
HK$29.77
HK$148.85
250 - 495
HK$27.946
HK$139.73
500 - 1245
HK$25.208
HK$126.04
1250 +
HK$21.182
HK$105.91
*price indicative
