RS PRO IEC Thermocouple Connector for use with Type K Thermocouple Type K, Miniature

  • RS Stock No. 455-9786
  • Manufacturer RS PRO
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

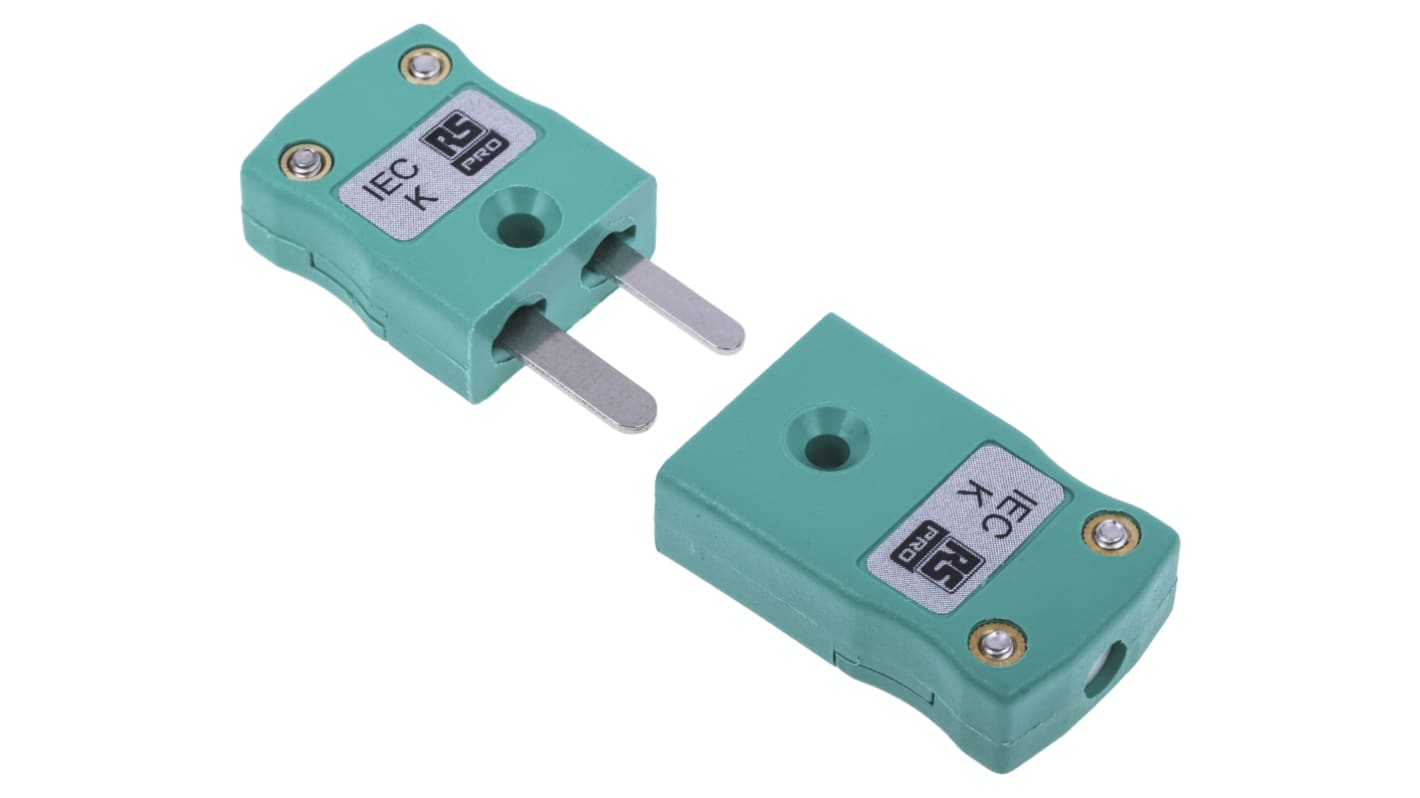

RS Pro Miniature Thermocouple Connector Set

Miniature thermocouple plug and sockets, supplied as a pair.

Features & Benefits

Supplied in a set of plug & socket for quick and simple installation
Suitable for general scientific and industrial processes
Polarised contacts to ensure a correct connection
Colour coding in accordance with IEC specification
Supports up to 4 mm diameter thermocouple cable
Maximum continuous operating temperature of 220°C
Optional cable clamp available to fasten cables securely to the thermocouple

What is a Thermocouple Connector?

Thermocouple connectors are an accurate and convenient way of interconnecting your temperature sensing components. Using these connectors allows a chain to be formed from the measuring tip of your temperature sensor to the host computer or meter. It is important that all the components in the chain are made from the same thermocouple material to prevent any alteration or distortion of the original signal. To achieve this, thermocouple connectors have pins made from the same material as the thermocouple they are being used to connect or a compensating material. The connector housing has the thermocouple type clearly printed on it and is also colour coded to allow easy identification. The connector is opened up and the thermocouple wires are simply screwed down into place using two captive screw clamps.

Features and Benefits

• Pins made from true thermocouple alloys or compensating material for accurate signal transmission
• IEC colour coding for quick and easy identification
• Polarised flat pin contacts for an accurate connection
• Made from rugged glass-filled thermoplastic
• Able to withstand a high temperature of 220°C
• For use with stranded or solid wires
• Accepts thermocouple cable up to 4mm in diameter
• Simple captive screw clamp connection for quick assembly
• Polarity and thermocouple type clearly marked on housings

Applications

These miniature plug and socket connectors are used in any application where thermocouples are installed, extended or replaced. Their robust construction makes these miniature thermocouple connectors ideal for use even in the most demanding temperature measurement applications.

Accessories

A cable clamp is available for use with this thermocouple socket, please see stock number 236-4104

Specifications
Attribute Value
Accessory Type Miniature In-Line Plug & Socket Connectors
For Use With Type K Thermocouple
Application Miniature In-Line Connector
1934 In stock for delivery within 3 working days
Price Each
HK$ 84.97
(exc. GST)
units
Per unit
1 - 14
HK$84.97
15 - 49
HK$82.96
50 +
HK$82.33
