RS PRO Nylon Screw Insulator, M5, 4mm
- RS Stock No.:
- 178-787
- Manufacturer:
- RS PRO
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 178-787
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

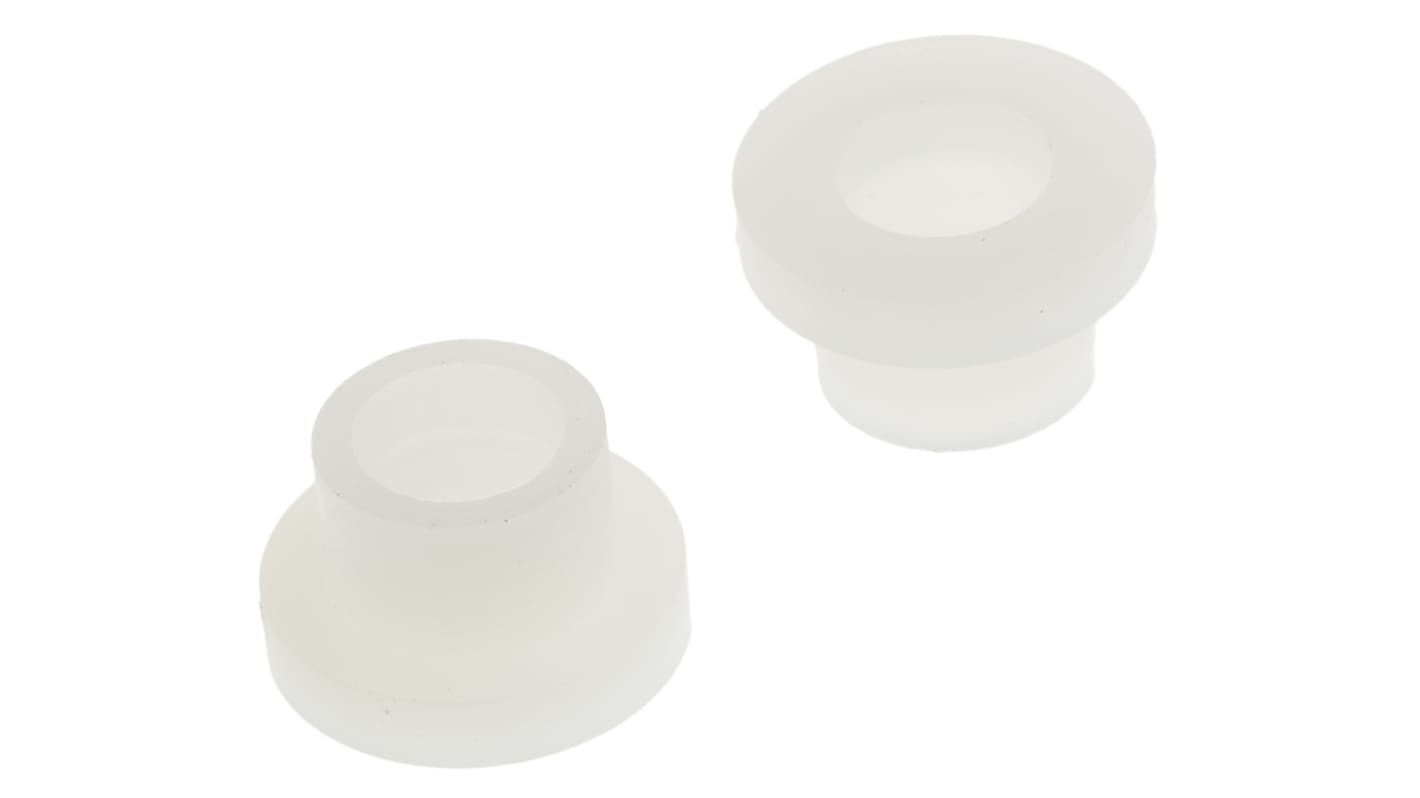

Nylon Screw Insulators
Although primarily intended for the isolation of metal screws, these insulating spacers are also suitable for use as lightly loaded bearings.
Note
Dimensions refering to the line drawing:
Dimension A is Flange Diameter
Dimension B is Flanges
Dimension C is Body Diameter
Dimension D is Hole Diameter
Dimension A is Flange Diameter
Dimension B is Flanges
Dimension C is Body Diameter
Dimension D is Hole Diameter
Plain Spacers & Screw Insulators
Plain Spacers - PVC, Nylon & Nickel Plated Brass
Screw Insulators
Specifications
Attribute | Value |
|---|---|
| For Screw Size | M5 |
| Inside Diameter | 5.1mm |
| Body Outside Diameter | 7mm |
| Body Length | 4mm |
| Flange Diameter | 10.2mm |
| Flange Thickness | 2 mm |
| Material | Nylon |
