SMC Vacuum Filter - ZFC Series, 5μm, 8 Dia. mm Port Connection
- RS Stock No.:
- 175-9948
- Mfr. Part No.:
- ZFC75-B
- Manufacturer:
- SMC
103 In stock for delivery within 3 working days
Added
Price Each
HK$187.52
| Units | Per unit |
| 1 - 9 | HK$187.52 |
| 10 + | HK$181.88 |
- RS Stock No.:
- 175-9948
- Mfr. Part No.:
- ZFC75-B
- Manufacturer:
- SMC
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

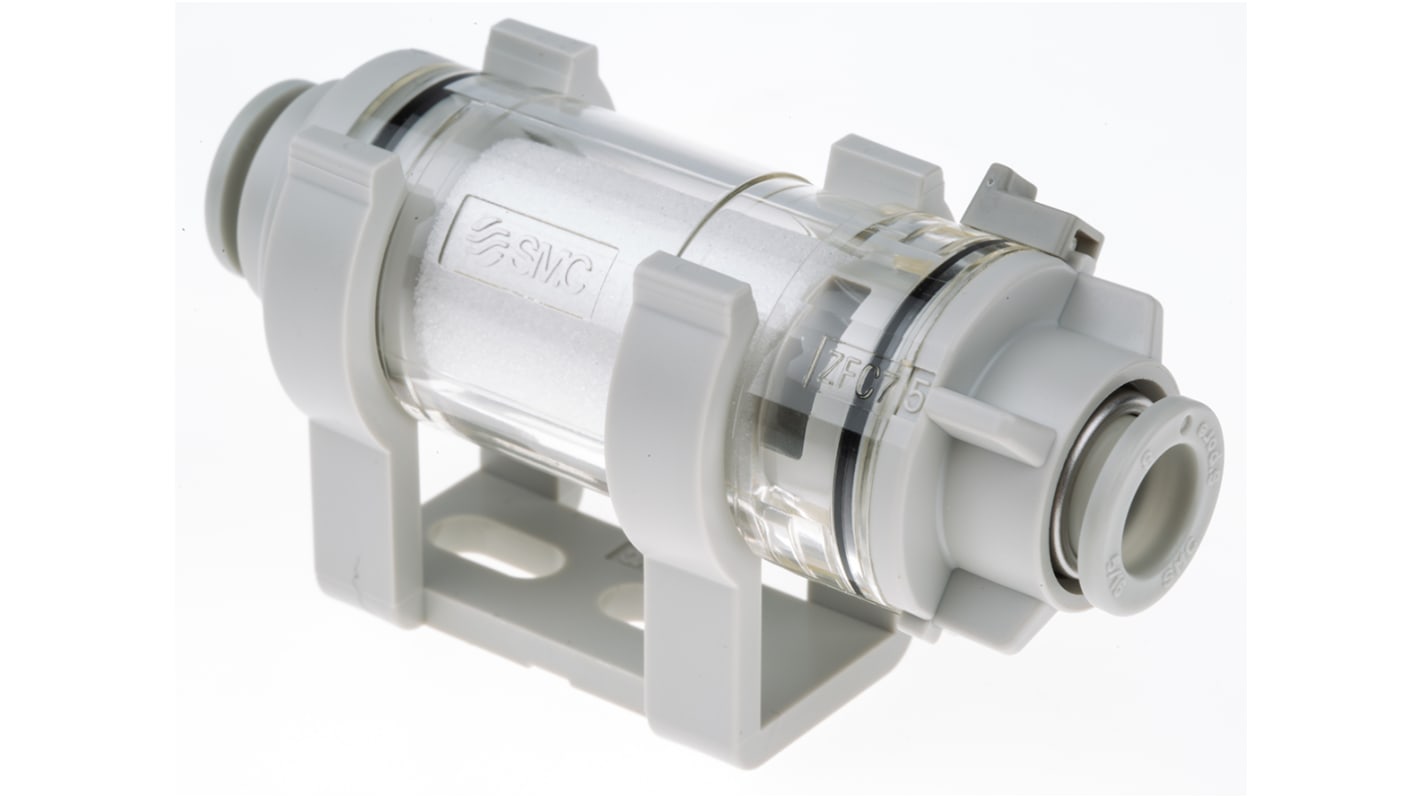

SMC In-line Air Filter
The SMC ZFC in-line air filter prevents trouble in equipment caused by contaminants in the air and has a maximum flow rate of 100L/minute. Both, positive pressure and vacuum pressure can be used with a single unit. During positive pressure, a lock mechanism prevents components from being scattered when they are loosened. It is light in weight and compact and the flexible mounting orientation makes it easy to install to the line.
Features and Benefits
Tubing outer diameter is 8mm
Maximum flow rate is 100L/min
5μm filtration level
Maximum operating pressure is 1.0MPa
Operating temperature ranges between 0°C and 60°C
Maximum flow rate is 100L/min
5μm filtration level
Maximum operating pressure is 1.0MPa
Operating temperature ranges between 0°C and 60°C
Specifications
Attribute | Value |
|---|---|
| Port Connection | 8 Dia. mm |
| Filtration Size | 5µm |
| Manufacturer Series | ZFC |
| Maximum Flow Rate | 100L/min |
| Maximum Operating Pressure | 1 MPa |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Pressure | -100kPa |
