RS PRO Brass Quick Air Coupling Male ISO 228 Class A 4mm Dle

View this category

Subtotal (1 bag of 2 units)*

HK$191.09

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +HK$191.09HK$95.545

*price indicative

RS Stock No.:
187-8797
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Quick Air Coupling

Thread Standard

ISO 228 Class A

Sub Type

Dle

Hose Barb Connection

4mm

Material

Brass

Thread Gender

Male

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

80°C

Maximum Operating Pressure

12 bar

Finish

Nickel Plated

Standards/Approvals

1907/2006, 2011/65/CE, 2014/68/UE, ISO 228 Class A, PED, UNI ISO 6150 B-12, UNI ISO 6150 C-10

COO (Country of Origin):
IT

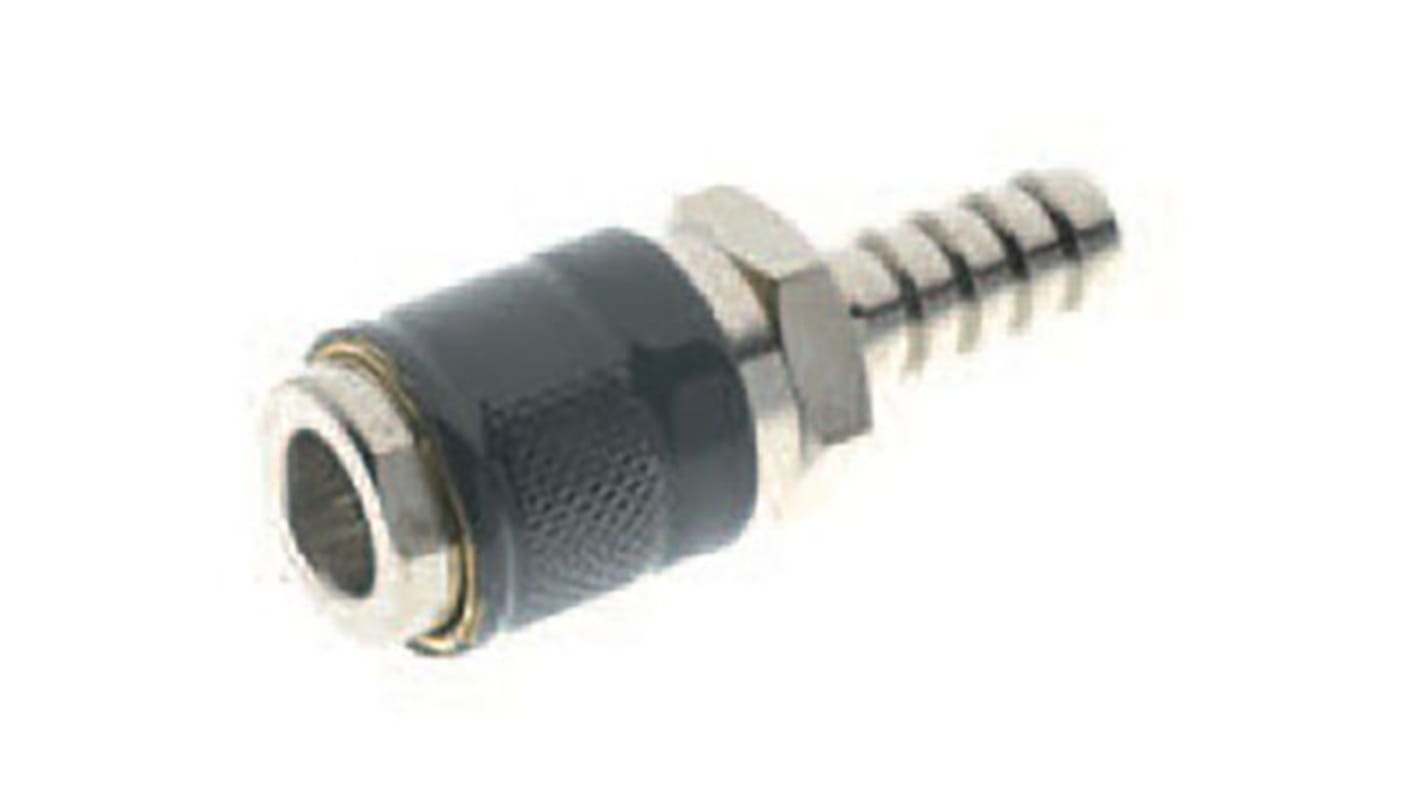

RS PRO Quick Connect Coupling


The RS PRO quick connect coupling has a hose barb connection with a size of 4mm. This MIGNON profile socket with male coupling is interchangeable with RECTUS/LEGRIS, PARKER 21/90, CAMOZZI 5050-5150 and CEJN 200. The socket has a rest for rubber hose for shutter plug construction.

Features and Benefits


• Nickel-plated brass body

• NBR O-ring seals

• Silicon free

• Working pressure ranges between 0bar and 12bar

• Maximum static pressure: 35bar

• Operating temperature ranges between -20°C and 80°C

• Fluid: compressed air

• Light and compact

Applications


• Compressed air and tools

• Pneumatic and fluid technology

• Food and beverage

• Life and sciences

• Cooling system

• Inert gases, vacuum

Certifications


• REACH compliant

• PED 2014/68/UE approved
