Dialight 570-0100-222F, Green Right Angle PCB LED Indicator, 3 LEDs, Through Hole 2.5 V
- RS Stock No.:
- 546-1135
- Mfr. Part No.:
- 570-0100-222F
- Manufacturer:
- Dialight

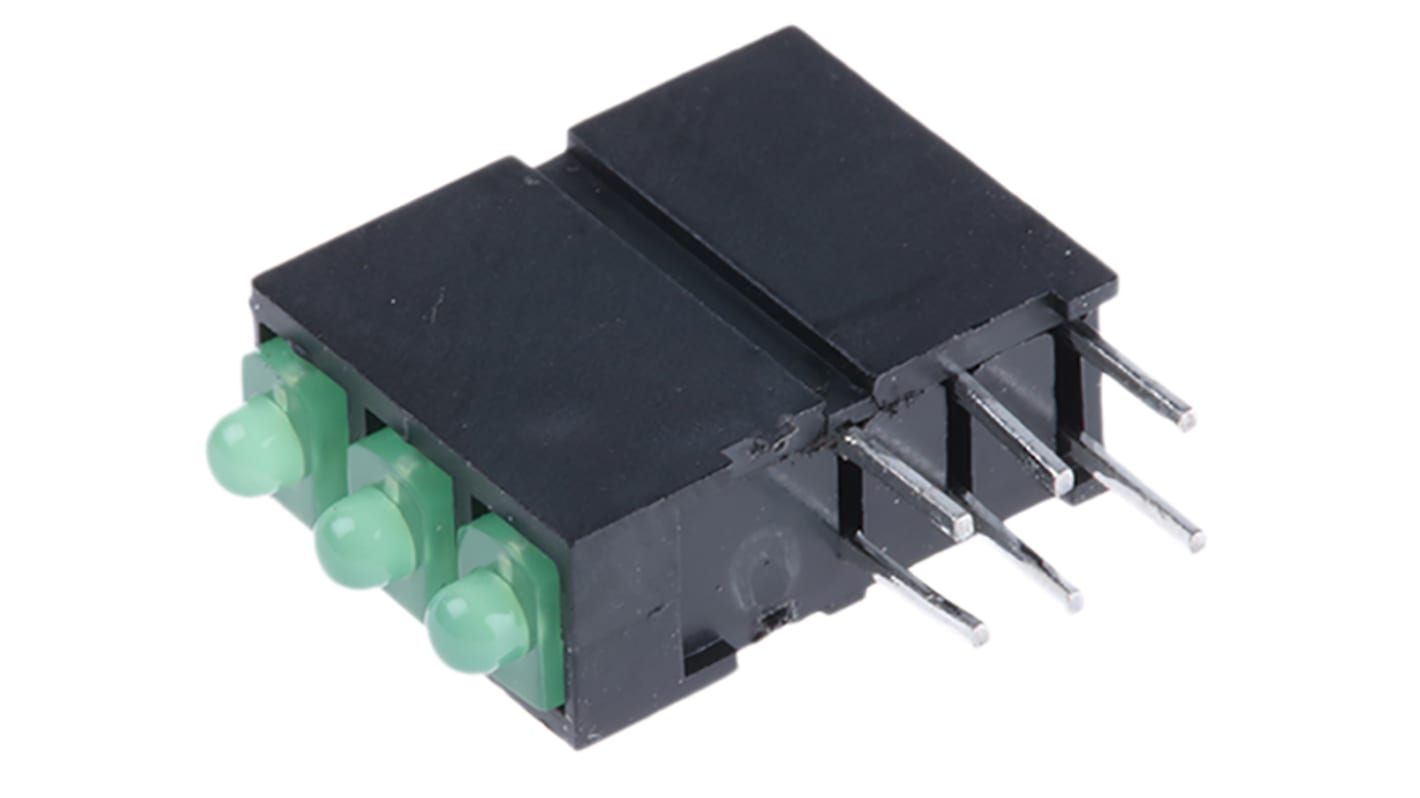

The image is for reference only, please refer to product details and specifications
Stock check temporarily unavailable - call for stock availability
Added
Price Each
HK$25.16
| Units | Per unit |
| 1 - 6 | HK$25.16 |
| 7 - 12 | HK$24.61 |
| 13 + | HK$24.09 |
- RS Stock No.:
- 546-1135
- Mfr. Part No.:
- 570-0100-222F
- Manufacturer:
- Dialight
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Dialight 570-0100 Series LED CBI® Circuit Board Indicators
The 570-0100 series, from Dialight, are tri-level PCB LED indicators. They are a part of Dialight's CBI® circuit board indicator family. The 570-0100 consists of three 2mm (T-3/4) LEDs within a black plastic housing. The housing holds the LEDs at a right angle whilst providing a high contrast between them. The 570-0100 comes in a variety of red, yellow and green colour combinations.
Features of the 570-0100 PCB LED indicators:
Tri-level (3 LEDs high)
Through-hole mounting
Black plastic housing
right angle
DIN 41494 compatible
Tri-level (3 LEDs high)
Through-hole mounting
Black plastic housing
right angle
DIN 41494 compatible
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PCB LED Indicators, Dialight
Specifications
Attribute | Value |
|---|---|
| LED Colours | Green |
| Number of LEDs | 3 |
| Mounting Type | Through Hole |
| Supply Voltage | 2.5 V |
| Number of Pins | 6 |
| Viewing Angle | 38 ° |
| Dominant Wavelength | 568 nm |
| LED Orientation | Right Angle |
| Dimensions | 14.62 x 4.97 x 10.17mm |
| Length | 14.62mm |
| Width | 4.97mm |
| Height | 10.17mm |
| Intensity | 8.7mcd |
