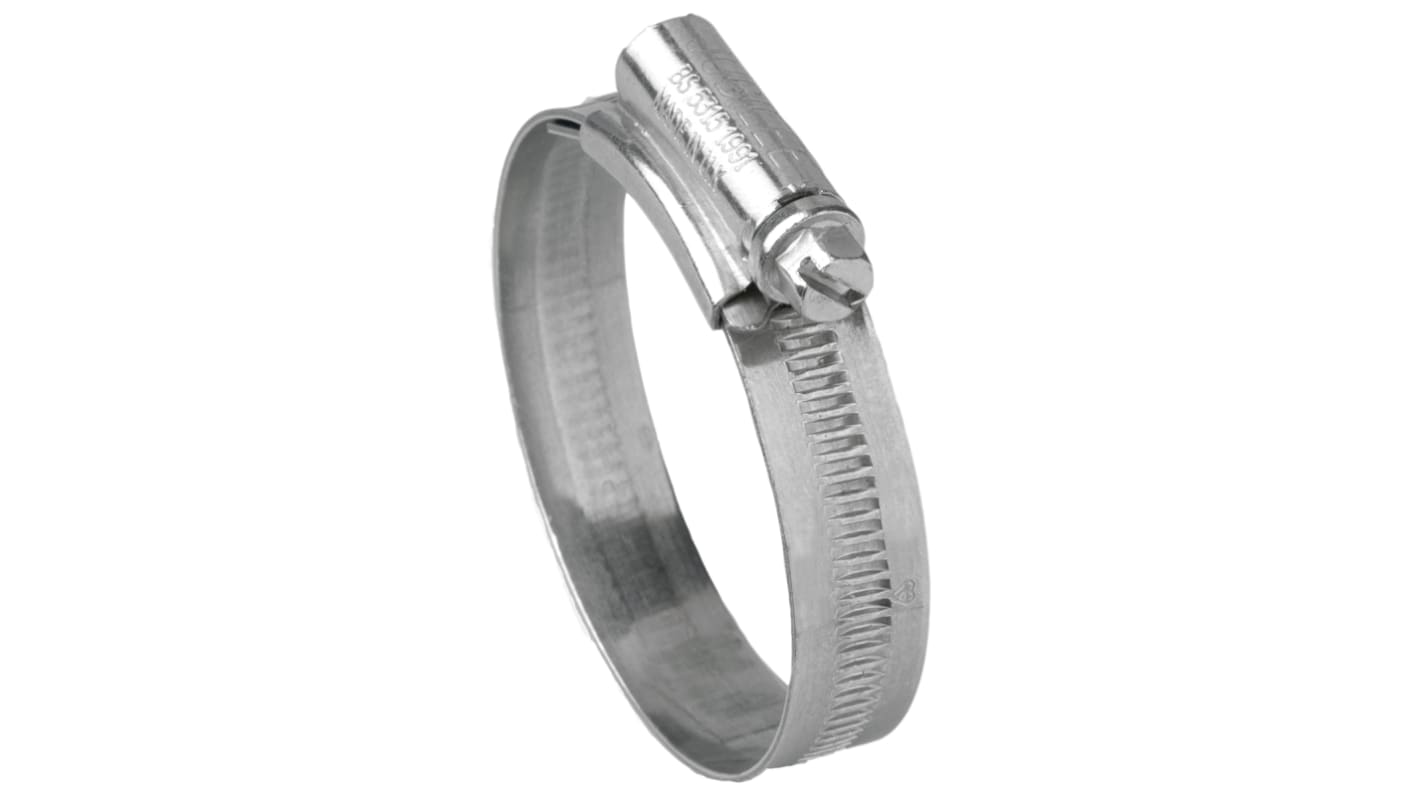

Jubilee Zinc-Plated Mild Steel Slotted Hex Worm Drive, 13mm Band Width, 90mm - 120mm Inside Diameter

  • RS Stock No. 908-9024
  • Mfr. Part No. 5MS
  • Manufacturer Jubilee
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Original Jubilee® Clips – Mild Steel

These original range Jubilee clips were first manufactured back in 1921, and today the brand is well-known and trademarked around the world. As the name and heritage would suggest, you can be assured of the highest quality products, all produced from premium grade materials and adhering to a wide range of quality standards and EU directives.
Jubilee’s original range of hose clamps is where it all started and these sturdy worm drive hose clips are suitable for the vast majority of applications. These mild steel zinc protected hose clips have a continuously threaded band so clips are flexible and easy to adjust to the required size. In addition, the rolled edges and smooth interior of the band ensures protection for all types of hoses, even soft rubber or silicone.

Features and Benefits

240 hour corrosion resistance NSS (Neutral Salt Spray) Test – equivalent of 60 years in an outdoor UK environment
Independently tested by the British Standards Institute (BSi) to carry the British Standard Kitemark™
Complies with DIN 3017 Standard guaranteeing that the hose clamp will join with a perfect tight fit
Also complies with SAE internationally-recognised standards
Hose clips are manufactured in an ISO 9001:2008 certified plant so you can be assured of high quality production

Applications

These mild steel zinc protected clips are ideally suited for use in the following environments:

Agriculture
Automotive
DIY
Industrial

Specifications
Attribute Value
Inside Diameter 90 → 120mm
Clip Type Worm Drive
Material Zinc-Plated Mild Steel
Inside Diameter Minimum 90mm
Inside Diameter Maximum 120mm
Band Width 13mm
Screw/Bolt Head Slotted Hex
83 In stock for delivery within 3 working days
Price 1 Bag of 5
HK$ 79.51
(exc. GST)
Bag(s)
Per Bag
Per unit*
1 +
HK$79.51
HK$15.902
*price indicative
