TE Connectivity, Solistrand Uninsulated Crimp Spade Connector, 1mm² to 2.6mm², 16AWG to 14AWG, M4 (#8) Stud Size
- RS Stock No.:
- 795-2175
- Mfr. Part No.:
- 36880
- Manufacturer:
- TE Connectivity

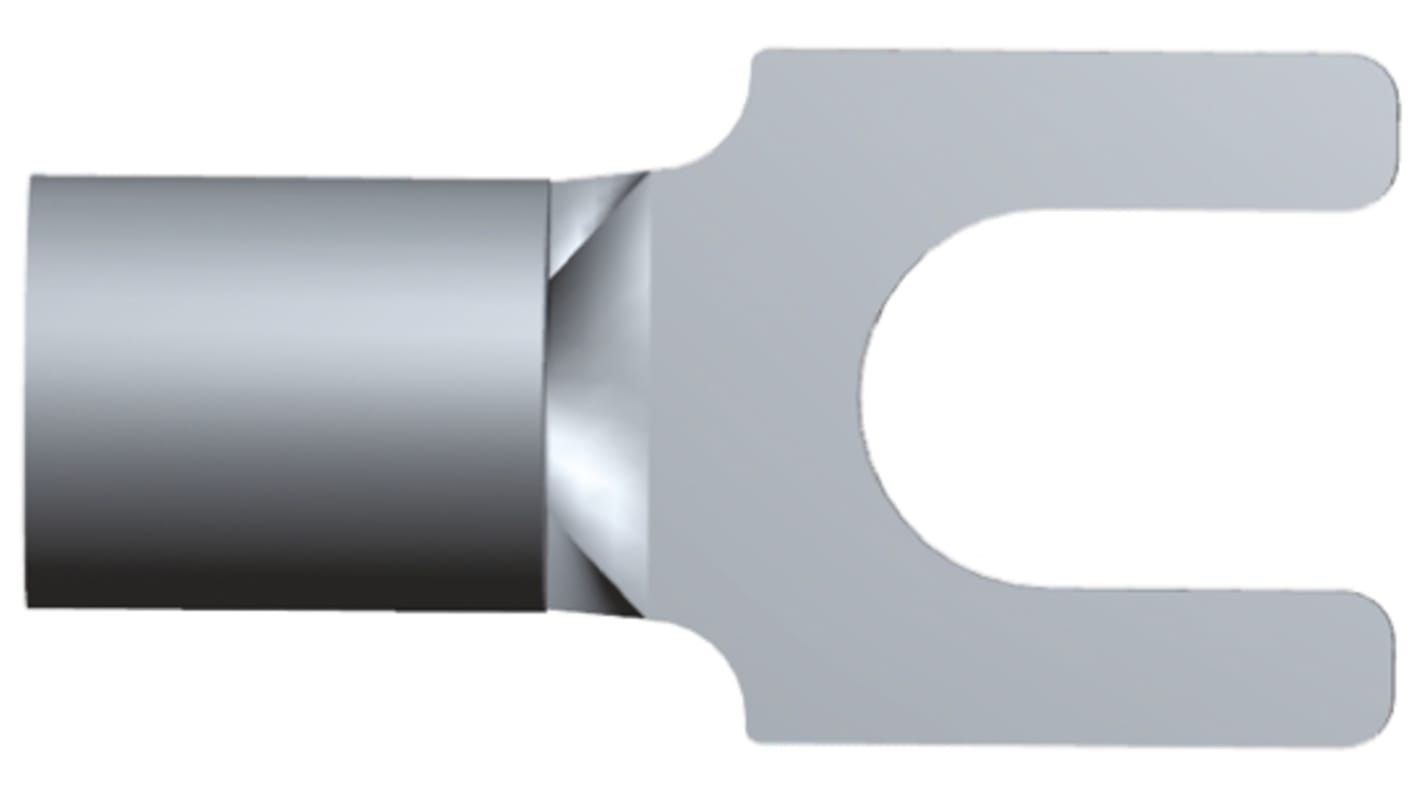

The image is for reference only, please refer to product details and specifications
On back order for despatch 06/11/2024, delivery within 3 working days
Added
Price Each (In a Pack of 50)
HK$2.495
| Units | Per unit | Per Pack* |
| 50 - 200 | HK$2.495 | HK$124.75 |
| 250 - 450 | HK$2.44 | HK$122.00 |
| 500 + | HK$2.387 | HK$119.35 |
| *price indicative | ||
- RS Stock No.:
- 795-2175
- Mfr. Part No.:
- 36880
- Manufacturer:
- TE Connectivity
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
TE Connectivity SOLISTRAND Spade Tongue Crimp Terminals
SOLISTRAND spade tongue crimp terminals designed to terminate solid and stranded wire and irregular shaped conductors. These SOLISTRAND spade tongue crimp terminals are made from fine grade high conductivity copper with tin plating and have closed barrels with brazed seams that create a uniform metal strength around the barrel. The inner surface of the barrels are either dimpled or serrated for maximum tensile strength and to maximise the electrical contact area after crimping. The bell shape barrel entrance of these SOLISTRAND spade tongue crimp terminals makes the insertion of wires easier.
Note
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TE Connectivity SOLISTRAND Terminals and Splices
Specifications
Attribute | Value |
|---|---|
| Series | Solistrand |
| Insulation | Uninsulated |
| Width | 7.54mm |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Shrouded/Unshrouded | Unshrouded |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M4 (#8) |
| Contact Plating | Tin |
| Overall Length | 13.46mm |
| Contact Material | Copper |
| Thickness | 0.84mm |
