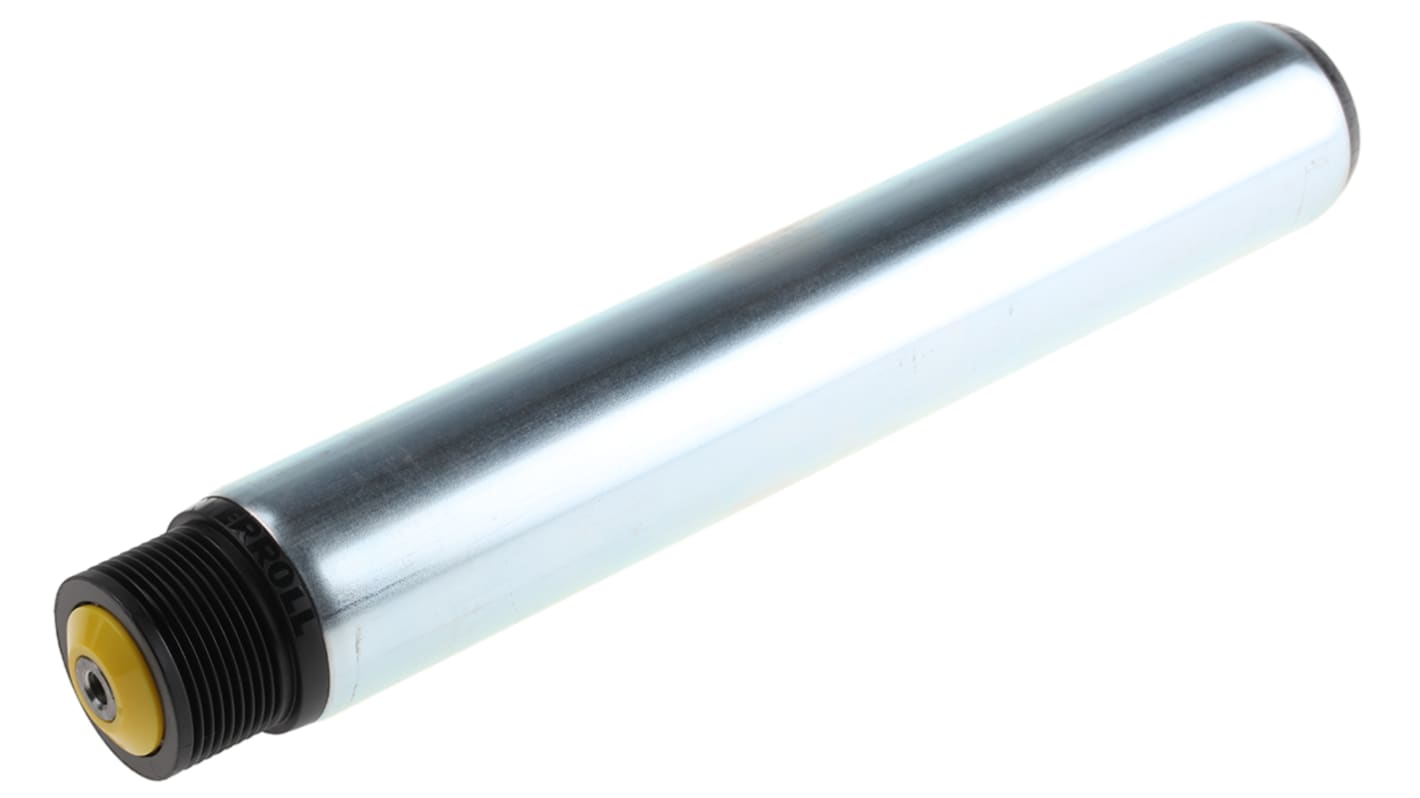

Interroll M8 Poly V Roller Drive, 50mm x 295mm
- RS Stock No.:
- 408-457
- Mfr. Part No.:
- 35PAJAAN7X
- Manufacturer:
- Interroll
5 In stock for delivery within 3 working days
Added
Price Each
HK$254.52
| Units | Per unit |
| 1 - 9 | HK$254.52 |
| 10 - 24 | HK$244.35 |
| 25 + | HK$234.16 |
- RS Stock No.:
- 408-457
- Mfr. Part No.:
- 35PAJAAN7X
- Manufacturer:
- Interroll
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Slave Rollers, Series 3500 Poly V
Style Poly V to be used with motorised Rollers EC200 Poly V and belts
Drive components are located away from conveying area (important to prevent soiling)
Standard Poly V belts, flexible PJ type: ISO9981;DIN 7867; pitch 2.24mm
Poly V belts with maximum of 4 ribs giving more than double the torque transmission achieved with standard round belts
Flexible belts for higher hole pitch tolerances
No deformation of tubes as a result of grooves
Drive components are located away from conveying area (important to prevent soiling)
Standard Poly V belts, flexible PJ type: ISO9981;DIN 7867; pitch 2.24mm
Poly V belts with maximum of 4 ribs giving more than double the torque transmission achieved with standard round belts
Flexible belts for higher hole pitch tolerances
No deformation of tubes as a result of grooves
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Roller Diameter | 50mm |
| Roller Length | 295mm |
| Component Type | Poly V Slave Roller |
| Load Capacity | 35kg |
| Inside Frame Width | 331mm |
| Spindle Thread Size | M8 |
| Maximum Conveying Speed | 0.8m/s |
| Overall Length | 331mm |
