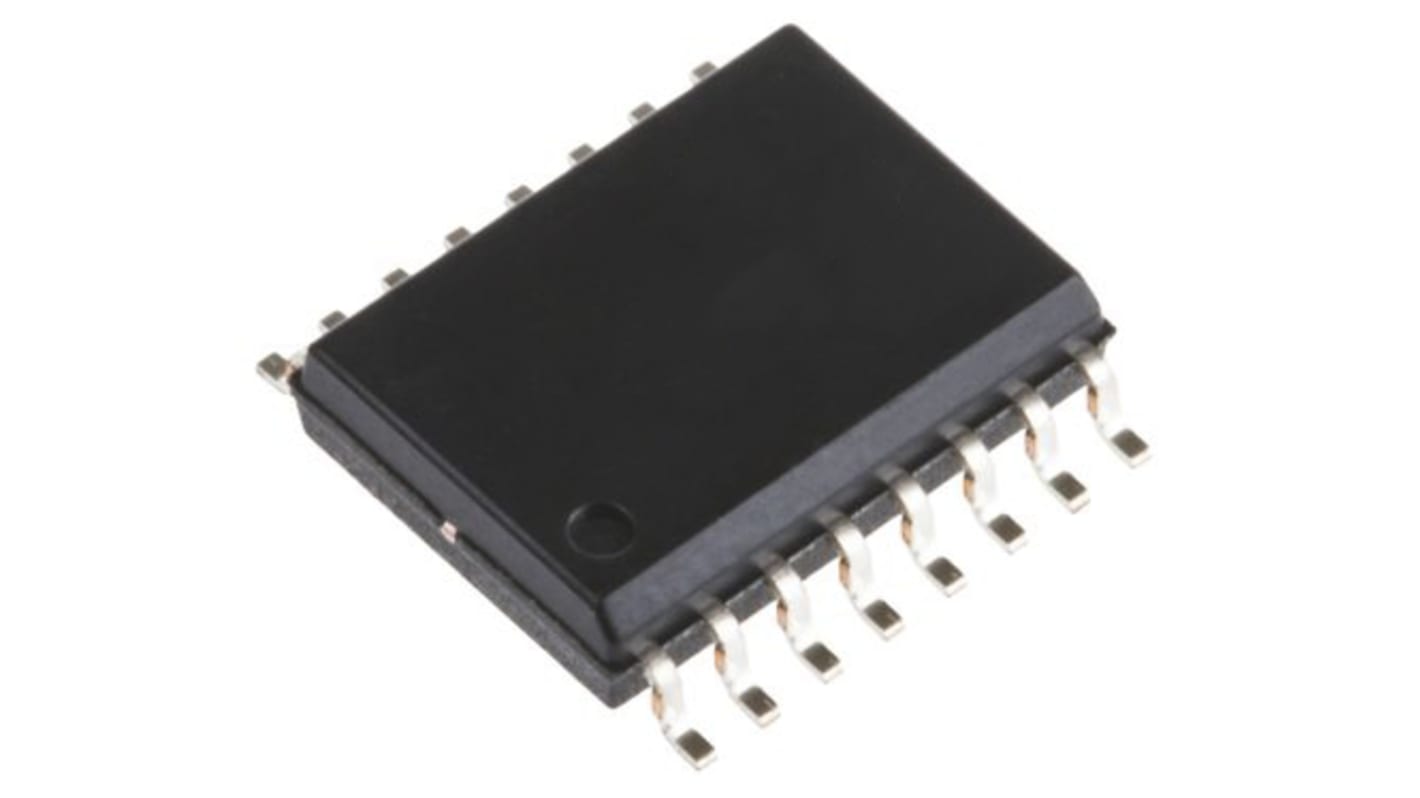

- RS Stock No.:
- 186-9019
- Mfr. Part No.:
- 74VHC595MX
- Manufacturer:
- onsemi
- RS Stock No.:
- 186-9019
- Mfr. Part No.:
- 74VHC595MX
- Manufacturer:
- onsemi
Product overview and Technical data sheets
Legislation and Compliance
Product Details
High Speed: tPD = 5.4 ns (typ) at VCC = 5V
Low power dissipation: ICC = 4 μA (max) at TA = 25°C
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.9V (typ)
Pin and function compatible with 74HC595
Applications
This product is general usage and suitable for many different applications.
Low power dissipation: ICC = 4 μA (max) at TA = 25°C
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.9V (typ)
Pin and function compatible with 74HC595
Applications
This product is general usage and suitable for many different applications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Package Type | SOIC |
Logic Function | Shift Register |
Logic Family | VHC |
Mounting Type | Surface Mount |
Operation Mode | Serial to Parallel |
Number of Elements | 1 |
Pin Count | 16 |
Minimum Operating Supply Voltage | 2 V |
Maximum Operating Supply Voltage | 5.5 V |
Dimensions | 10 x 4 x 1.5mm |
Minimum Operating Temperature | -40 °C |
Triggering Type | Positive Edge |
Maximum Operating Temperature | 85 °C |
