Renesas Electronics 9FG108EFILFT Frequency Synthesiser 48-Pin 4.6 V SSOP
- RS Stock No.:
- 250-3495P
- Mfr. Part No.:
- 9FG108EFILFT
- Manufacturer:
- Renesas Electronics

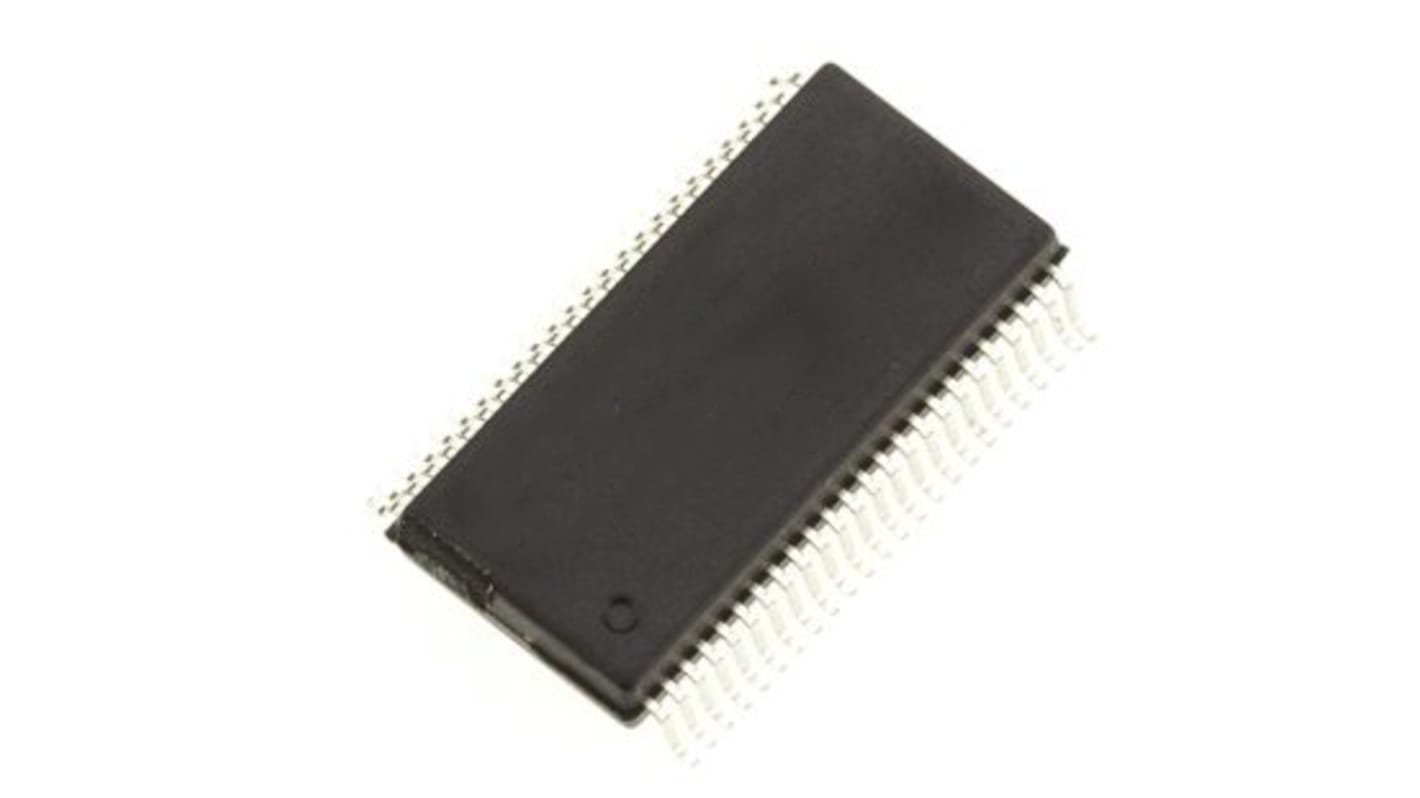

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
HK$2,100.00
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 50 - 99 | HK$42.00 |
| 100 - 249 | HK$41.00 |
| 250 - 499 | HK$40.20 |
| 500 + | HK$39.50 |
*price indicative
- RS Stock No.:
- 250-3495P
- Mfr. Part No.:
- 9FG108EFILFT
- Manufacturer:
- Renesas Electronics
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Frequency Synthesiser | |
| Maximum Output Frequency | 25MHz | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Pin Count | 48 | |
| Maximum Input Frequency | 22.5MHz | |
| Maximum Supply Voltage | 4.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.2mm | |
| Standards/Approvals | RoHS | |
| Length | 12.6mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Frequency Synthesiser | ||
Maximum Output Frequency 25MHz | ||
Mount Type Surface | ||
Package Type SSOP | ||
Pin Count 48 | ||
Maximum Input Frequency 22.5MHz | ||
Maximum Supply Voltage 4.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.2mm | ||
Standards/Approvals RoHS | ||
Length 12.6mm | ||
Automotive Standard No | ||
The Renesas Electronics frequency generator provides 8 differential HCSL output pairs. It can be used to drive PCe Gen1/2, SATA and USB3.0 devices. The part can use either a 14.31818 MHz or 25 MHz crystal. It can also be driven by a reference input clock instead of a crystal. It provides outputs with cycle-to-cycle jitter of less than 50 ps and output-to-output skew of less than 65 ps.
It generates common frequencies from 14.318MHz or 25MHz
It has 8 to 0.7V current-mode HCSL output pairs
It supports Serial-ATA at 100MHz
Two spread spectrum modes are -0.5% down spread and +/-0.25% centre spread for lower EMI
It has 31.5KHz spread modulation rate
Unused outputs may be disabled in either driven or Hi-Z state for power management
I-temp version available which supports embedded applications
