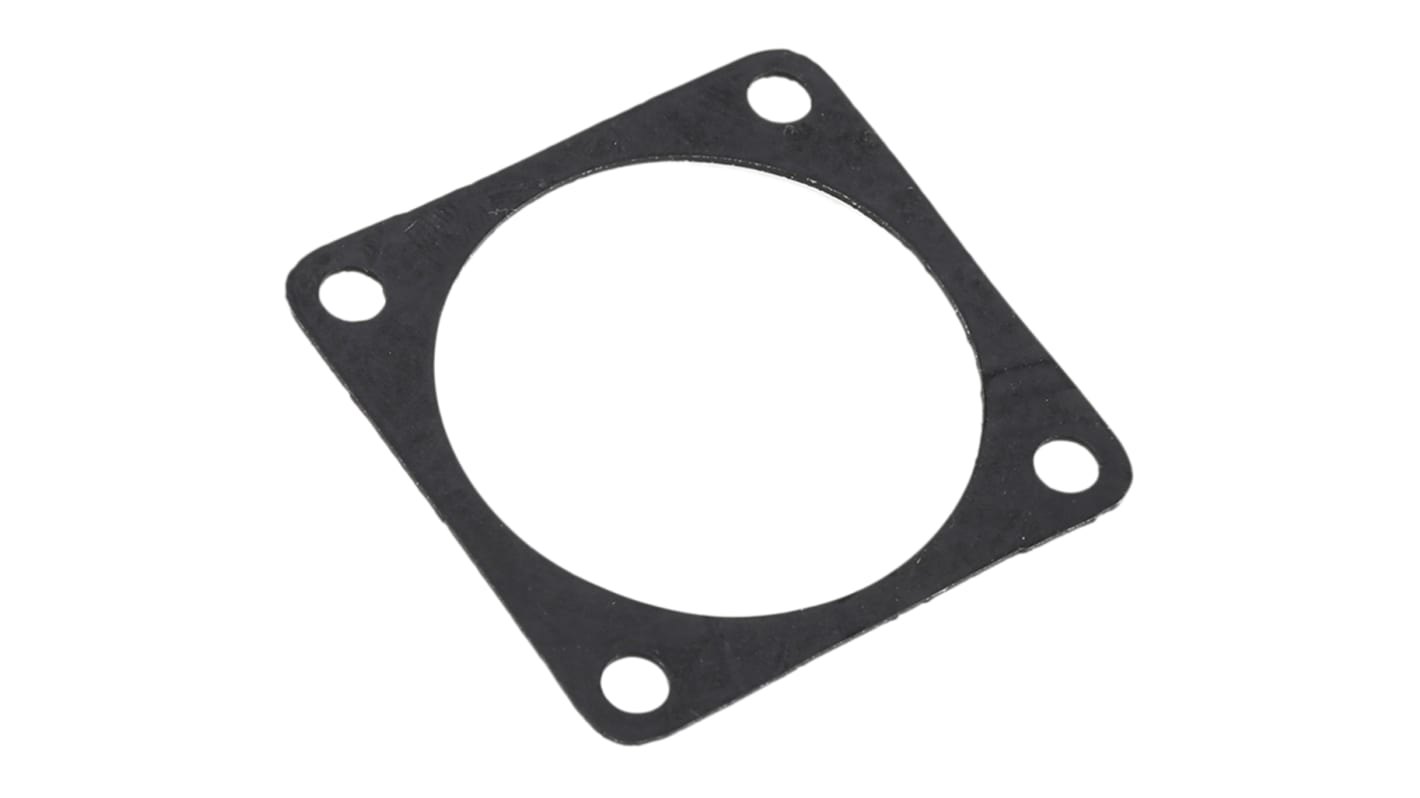

JE Series Connector Seal Flange for use with RJ Field Connector

  • RS Stock No. 448-1740
  • Mfr. Part No. JE 18
  • Manufacturer Amphenol
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Amphenol RJF RJ45 Ethernet Receptacles

RJ Field series RJ45 receptacles that allow ethernet Cat 5e connection for10 BaseT or 100 BaseTX networks to be used in harsh environments. These RJF ethernet receptacles are IP67 sealed, shock, vibration and traction resistant, have 4 positon mechanical coding/polarization and are connected to an RJ Field plug using a MIL-C-26482 type bayonet coupling mechanism. No field cabling tools are required.

The female RJ45 is soldered on to a PCB allowing for connection to various back terminations with either another female RJ45, an RJ45 cordset or an IDC module. A patented RJStop® system allows a standard RJ45 cordset to be used. These RJ Field receptacles have a metal shell with a black coated cadmium plating.

Applications:

• Robotics
• Industrial process control
• CNC machines
• Motion control
• Data acquisition in harsh environments

Amphenol RJF series RJ45 range includes the following:

• Stock number 447-9999 is an RJ Field receptacle with a square flange with 4 mounting holes
• Stock number 448-1699 is a jam nut receptacle
• Stock number 448-1728 is a metallic dust cap for use with the square flange metallic receptacle
• Stock number 448-1734 is a metallic dust cap for use with the jam nut receptacle.
• A panel gasket is also available for the square flange receptacle, see stock number 448-1740

Note

For suitable patch leads see Stock No. 185-9617 (typical of range)

Specifications
Attribute Value
Seal Type Flange
For Use With RJ Field Connector
Series JE
75 In stock for delivery within 3 working days
Price Each (In a Pack of 5)
HK$ 14.03
(exc. GST)
units
Per unit
Per Pack*
5 - 70
HK$14.03
HK$70.15
75 - 245
HK$13.564
HK$67.82
250 +
HK$13.224
HK$66.12
*price indicative
