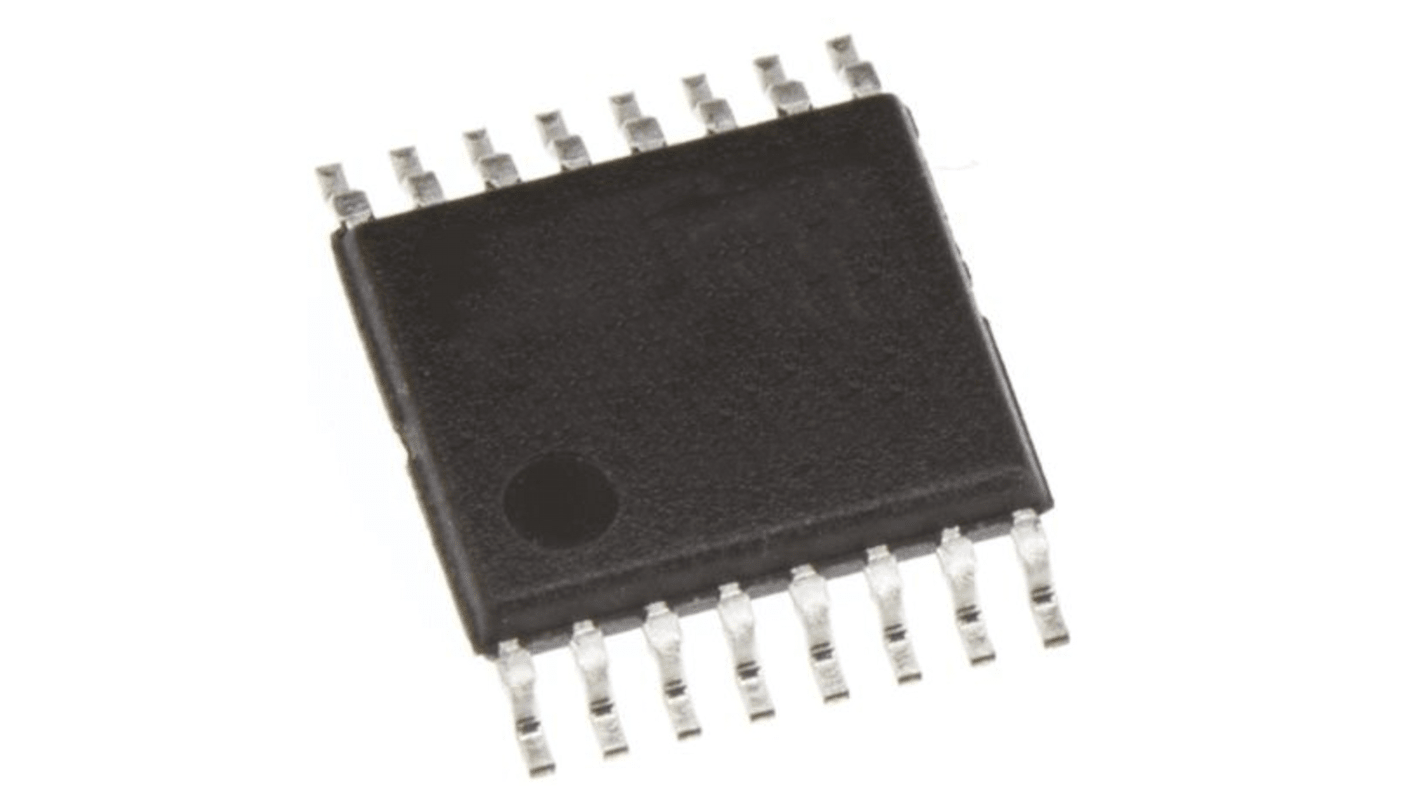

Renesas Electronics QS3VH253PAG, Bus Switch, 2 x 4:1
- RS Stock No.:
- 254-5012P
- Mfr. Part No.:
- QS3VH253PAG
- Manufacturer:
- Renesas Electronics
Bulk discount available
Subtotal 10 units (supplied in a tube)*
HK$99.00
FREE delivery for orders over HK$250.00
In Stock
- Plus 560 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 20 | HK$9.90 |
| 25 - 45 | HK$9.40 |
| 50 - 90 | HK$9.22 |
| 95 + | HK$9.04 |
*price indicative
- RS Stock No.:
- 254-5012P
- Mfr. Part No.:
- QS3VH253PAG
- Manufacturer:
- Renesas Electronics
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | LVTTL | |
| Configuration | 2 x 4:1 | |
| Number of Elements per Chip | 12 | |
| Number of Inputs per Chip | 4 | |
| Number of Outputs per Chip | 4 | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family LVTTL | ||
Configuration 2 x 4:1 | ||
Number of Elements per Chip 12 | ||
Number of Inputs per Chip 4 | ||
Number of Outputs per Chip 4 | ||
The Renesas Electronics hot switch quad 4:1 multiplexer/demultiplexer is a high bandwidth bus switch.It has very low ON resistance, resulting in under 250 ps propagation delay through the switch. The select (Sx) input controls the data flow. The multiplexers/demultiplexers are enabled when the enable (EA, EB) input is low. In the ON state, the switches can pass signals up to 5 V. In the OFF state, the switches offer very high impedence at the terminals. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes this ideal for high performance comminucation applications. It is characterized for operation from -40°C to +85°C.
6 V tolerant I/Os
Low RON - 4 Ω typical
Flat RON characteristics over operating range
Bidirectional dataflow with near-zero delay: no added ground bounce
Excellent RON matching between channels
VCC operation is 2.3 V to 3.6 V
High bandwidth is up to 500 MHz
LVTTL-compatible control Inputs
Undershoot clamp diodes on all switch and control inputs
Low I/O capacitance, 4 pF typical
Available in QSOP and TSSOP packages
Low RON - 4 Ω typical
Flat RON characteristics over operating range
Bidirectional dataflow with near-zero delay: no added ground bounce
Excellent RON matching between channels
VCC operation is 2.3 V to 3.6 V
High bandwidth is up to 500 MHz
LVTTL-compatible control Inputs
Undershoot clamp diodes on all switch and control inputs
Low I/O capacitance, 4 pF typical
Available in QSOP and TSSOP packages
