IXYS Bridge Rectifier Module, 40A, 1600V, 4-Pin
- RS Stock No.:
- 920-0802
- Mfr. Part No.:
- VBO40-16NO6
- Manufacturer:
- IXYS
On back order for despatch 04/06/2025, delivery within 3 working days
Added
Price Each (In a Tube of 10)
HK$200.938
| Units | Per unit | Per Tube* |
| 10 - 40 | HK$200.938 | HK$2,009.38 |
| 50 + | HK$196.919 | HK$1,969.19 |
| *price indicative | ||
- RS Stock No.:
- 920-0802
- Mfr. Part No.:
- VBO40-16NO6
- Manufacturer:
- IXYS
Product overview and Technical data sheets
Legislation and Compliance
Product Details

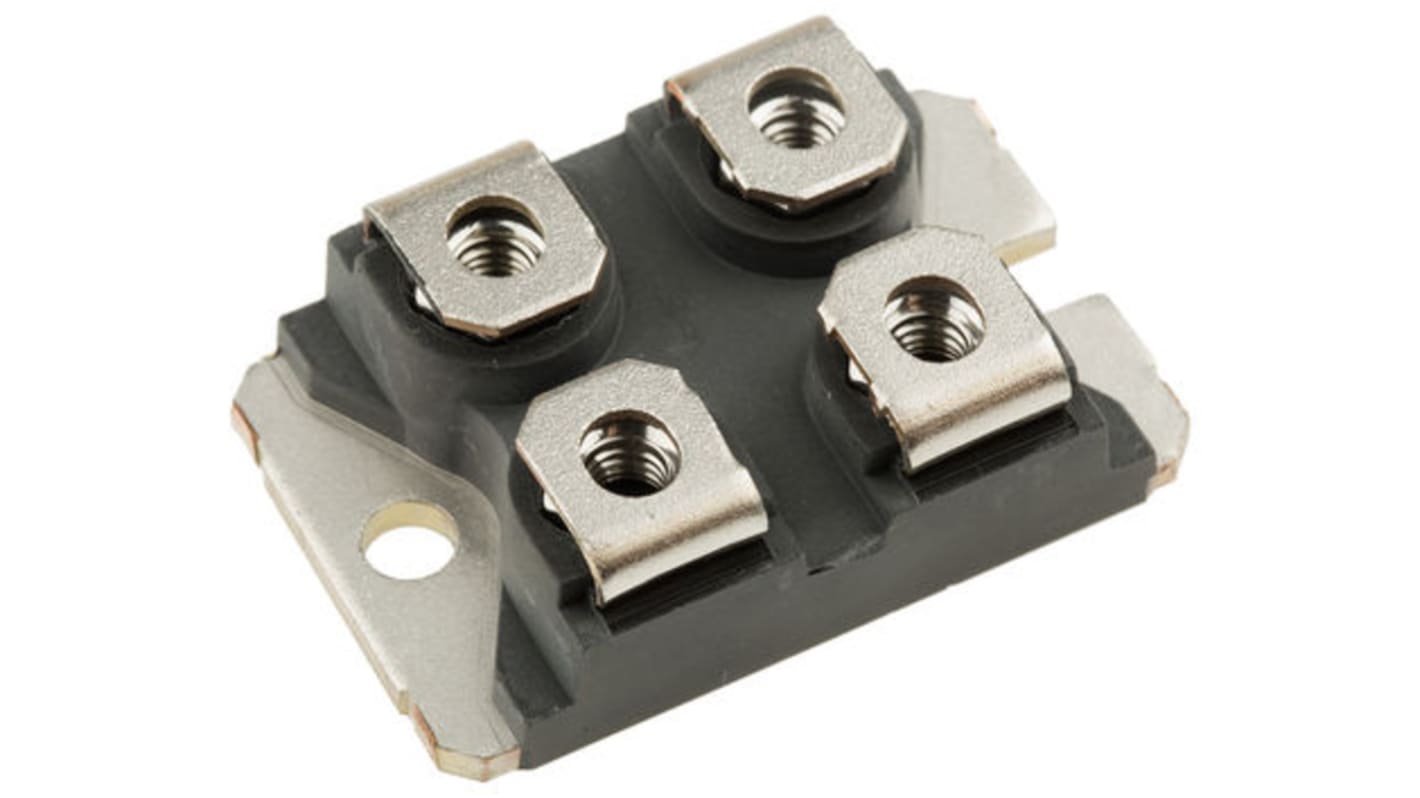

Bridge Rectifier Module with Screw Terminals, VBO40 Series, IXYS
Package with Direct Copper Bonding (DCB) isolated
Very low leakage current
Very low forward voltage drop
Improved thermal behaviour
Very low leakage current
Very low forward voltage drop
Improved thermal behaviour
Approvals
UL E72873
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bridge Rectifiers - IXYS
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 40A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | SOT-227B |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 320A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.15V |
| Peak Reverse Current | 300µA |
| Dimensions | 38.3 x 25.07 x 9.6mm |
| Length | 38.3mm |
| Height | 9.6mm |
| Width | 25.07mm |
