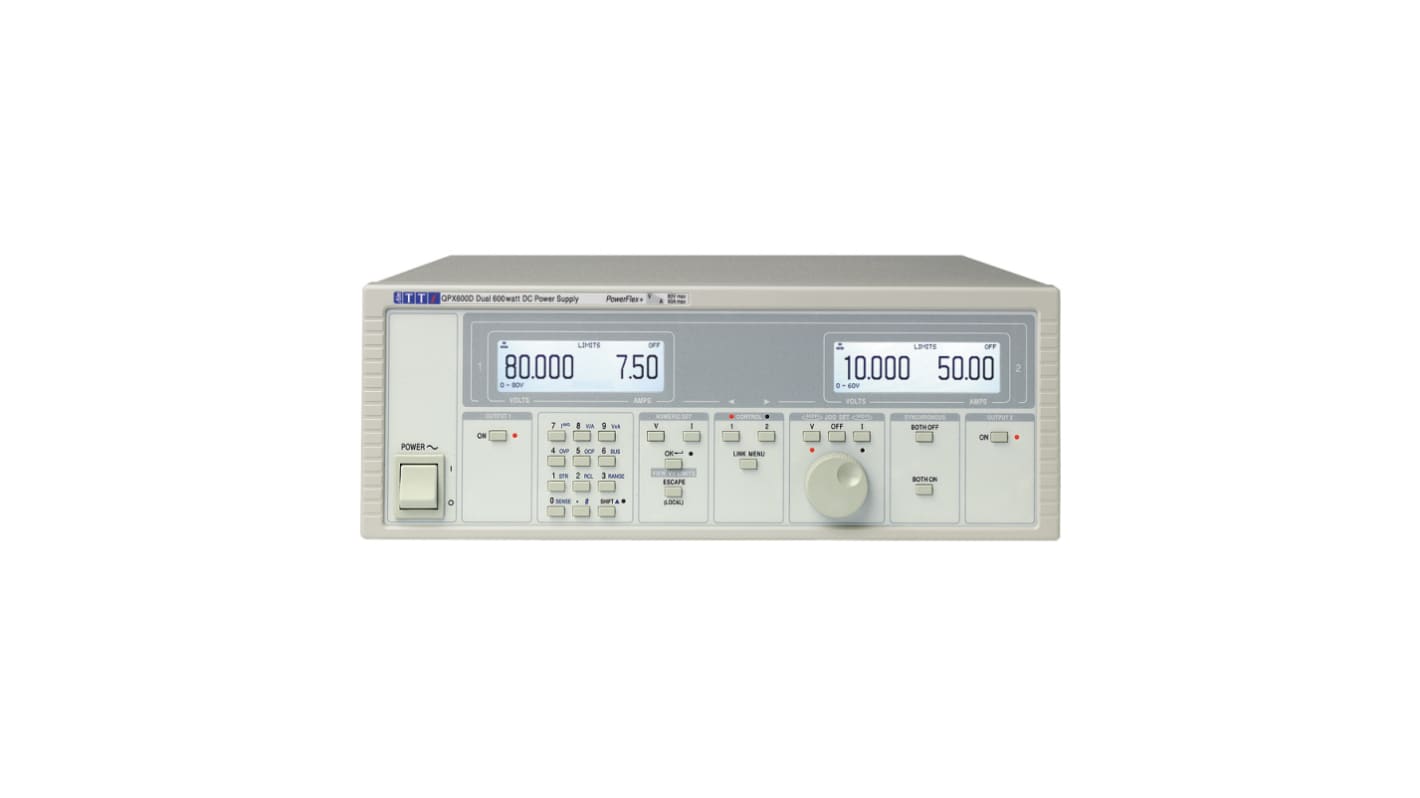

Aim-TTi Digital Bench Power Supply 600W, 2 Output 0 → 80V 0 → 50A

  • RS Stock No. 731-2855
  • Mfr. Part No. QPX600D
  • Manufacturer Aim-TTi
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Dual Output 1.2kW PowerFlex, 80V/50A Programmable DC Power Supply

The QPX600D and DP are dual output power supplies which offer two independent or tracking outputs of 600 watts each. The PowerFlex + design offers an extremely wide range of voltage/current combinations up to 80V and 50A on each output. Both versions include an analogue interface. The DP version includes USB, RS232, GPIB and LAN (Ethernet) with support for LXI.

Dual independent or tracking 600W outputs
Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple - fast transient response
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and current
GPIB, RS-232, USB and LAN (LXI) interfaces

Standards

EN 61010-1, EN61326

Supplied with

User manual, mains lead and CD containing driver software

Specifications
Attribute Value
Output Voltage 0 → 80V
Output Current 0 → 50A
Number of Outputs 2
Type Digital
Power Rating 600W
Supply Voltage 110 → 240V ac
Number of Displays 2
Input Connector IEC 320
Output Connector Binding Post Terminal
Minimum Temperature +5°C
Maximum Temperature +40°C
On back order for despatch 15/11/2019, delivery within 3 working days
Price Each
HK$ 17,222.40
(exc. GST)
units
Per unit
1 +
HK$17,222.40
