- RS Stock No.:
- 185-4482
- Manufacturer:
- RS PRO
188 In stock for delivery within 3 working days
Added
Price Each (In a Pack of 2)
HK$84.81
Units | Per unit | Per Pack* |
2 + | HK$84.81 | HK$169.62 |
*price indicative |
- RS Stock No.:
- 185-4482
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

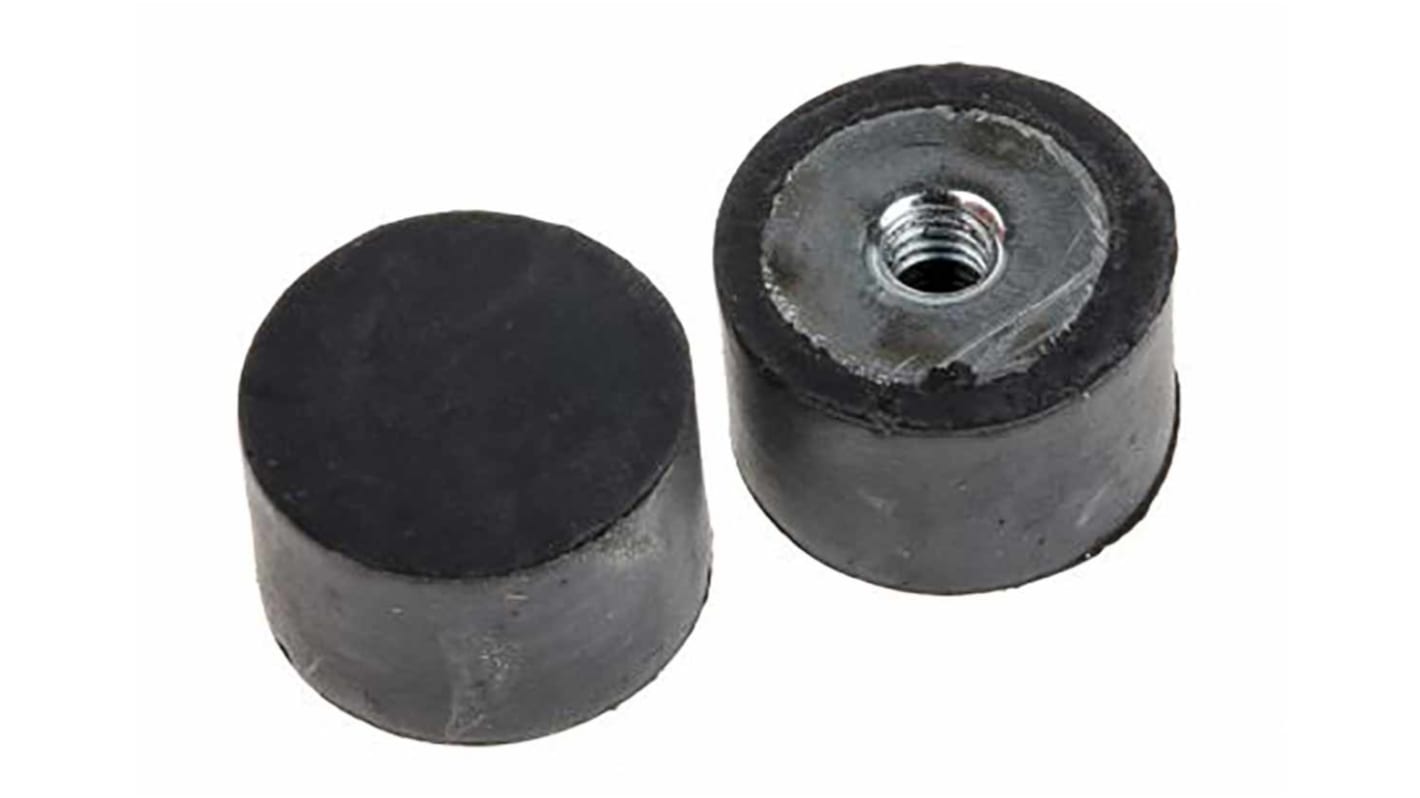

RS PRO Cylindrical Bobbin Mount
The RS PRO female/foot cylindrical bobbin mount has a thread size of M6 and dimensions of 20mm x 10mm (diameter x height). This stainless steel (316 grade) bobbin mount has a shore hardness of 55ShoreA and can be used in either compression and/or shear.
Features and Benefits
Simple and cost-effective vibration isolators
Compression load: 20.4kg
Compression load: 20.4kg
Applications
Static generator engines
Compressors
Motors
Compressors
Motors
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
---|---|
Anti Vibration Mount Type | Female Buffer Foot |
Thread Size | M6 |
Diameter | 20mm |
Overall Height | 15mm |
Material | Stainless Steel |
Compression Load | 20.4kg |
Foot Shape | Cylindrical |
Metalwork | Stainless Steel |
Shore Hardness | 55 Shore A |
